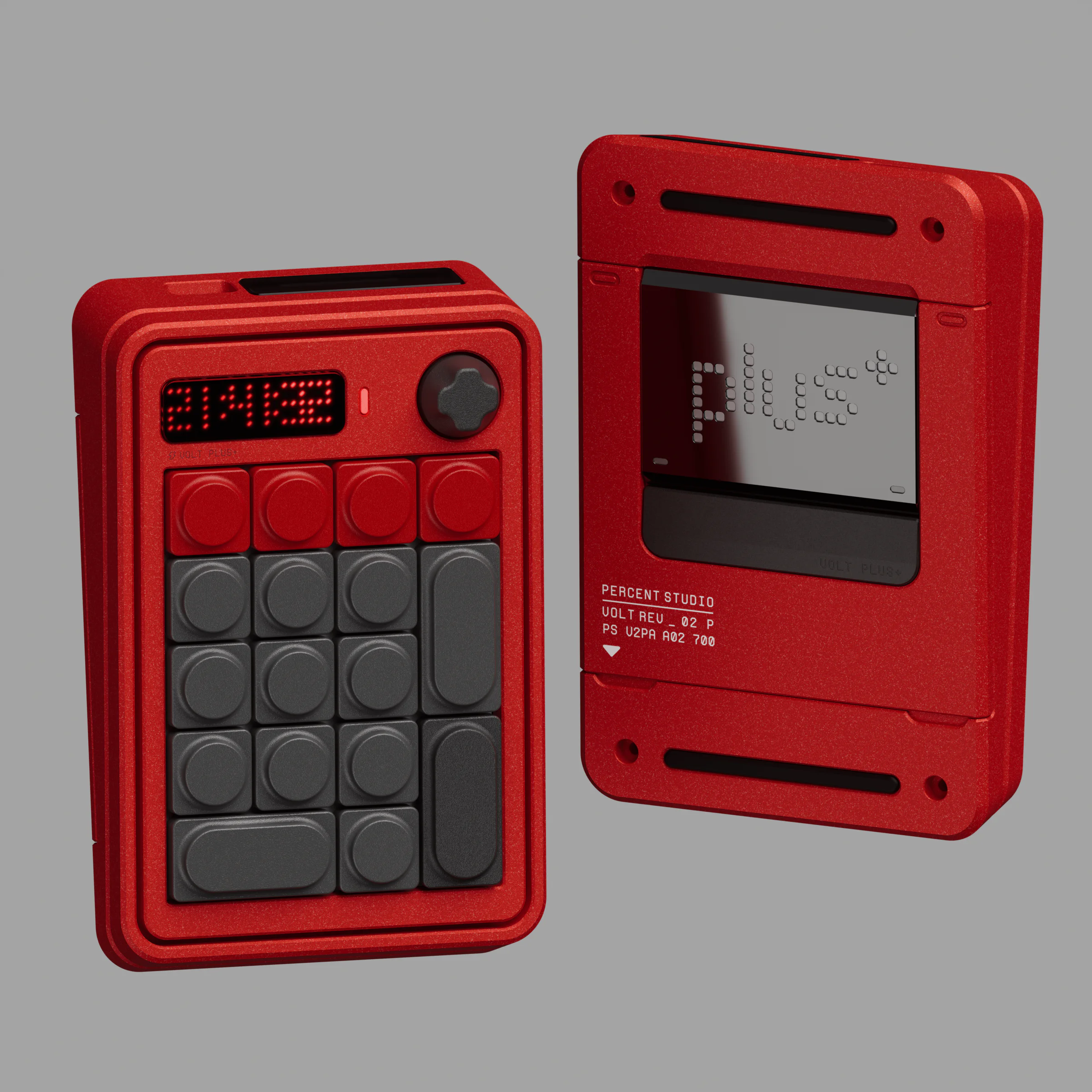

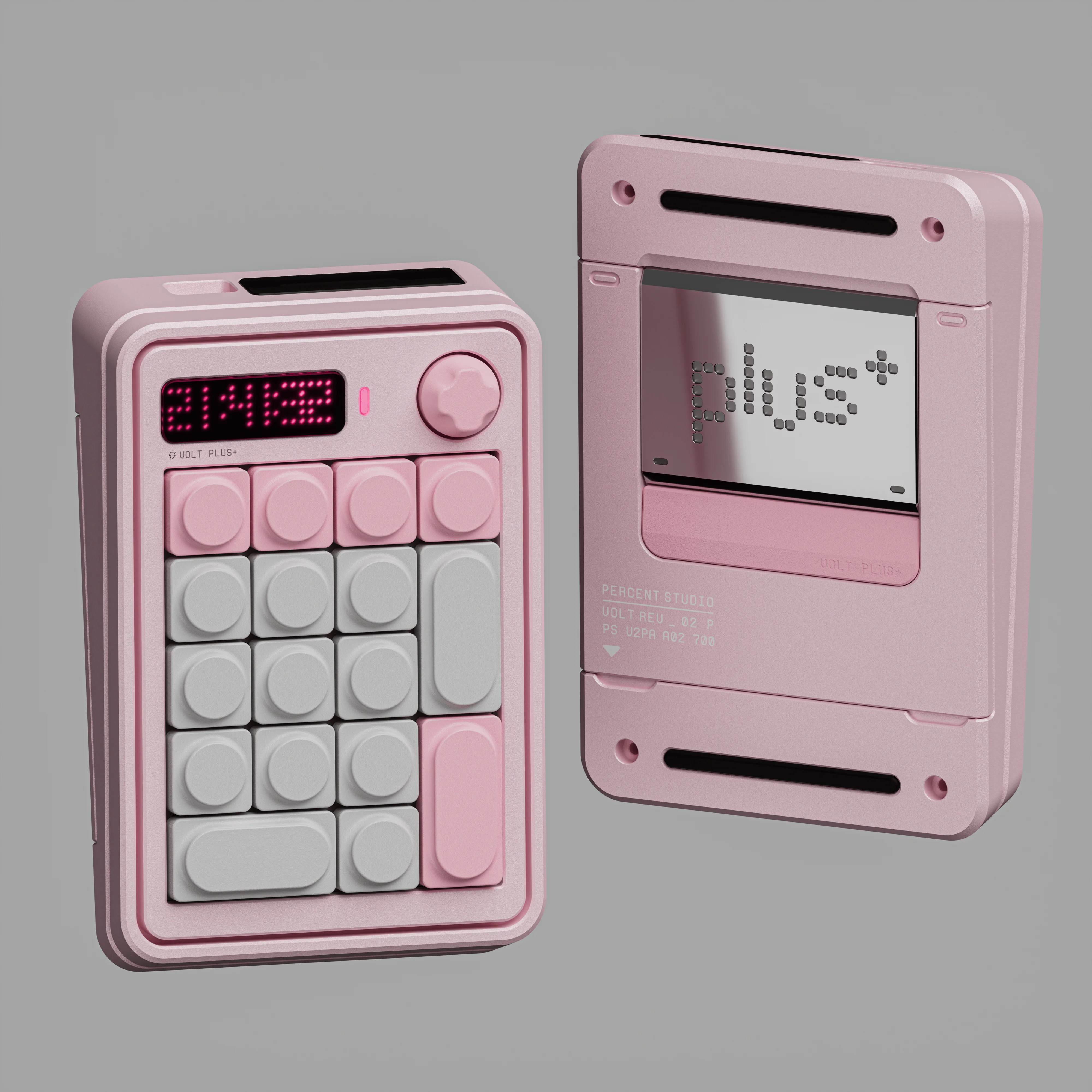

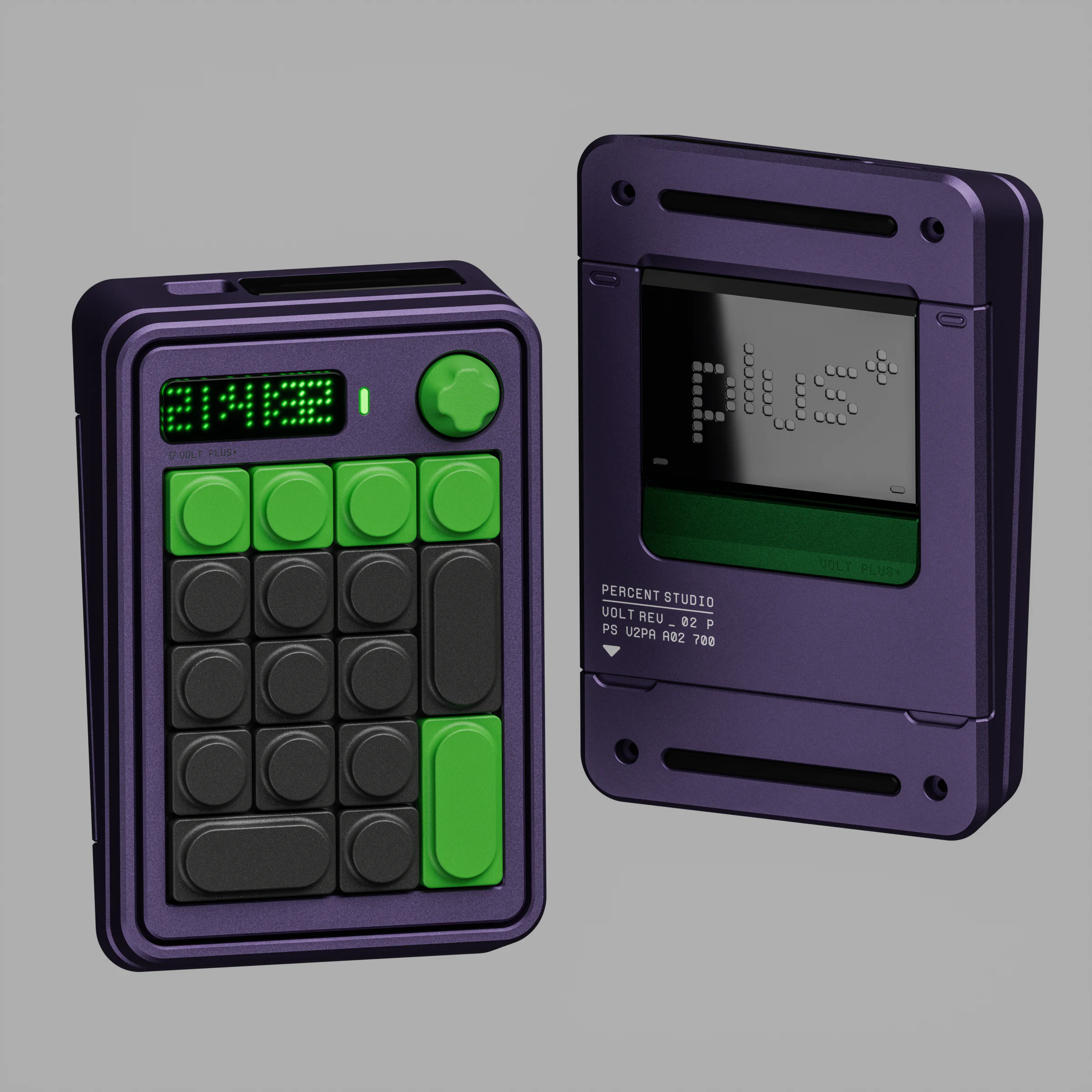

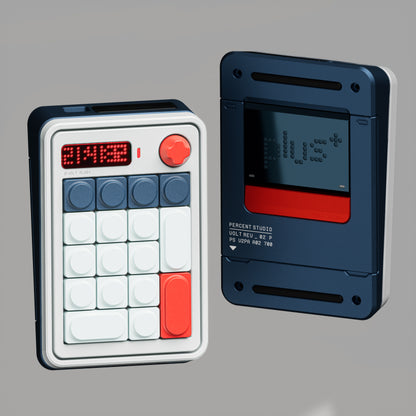

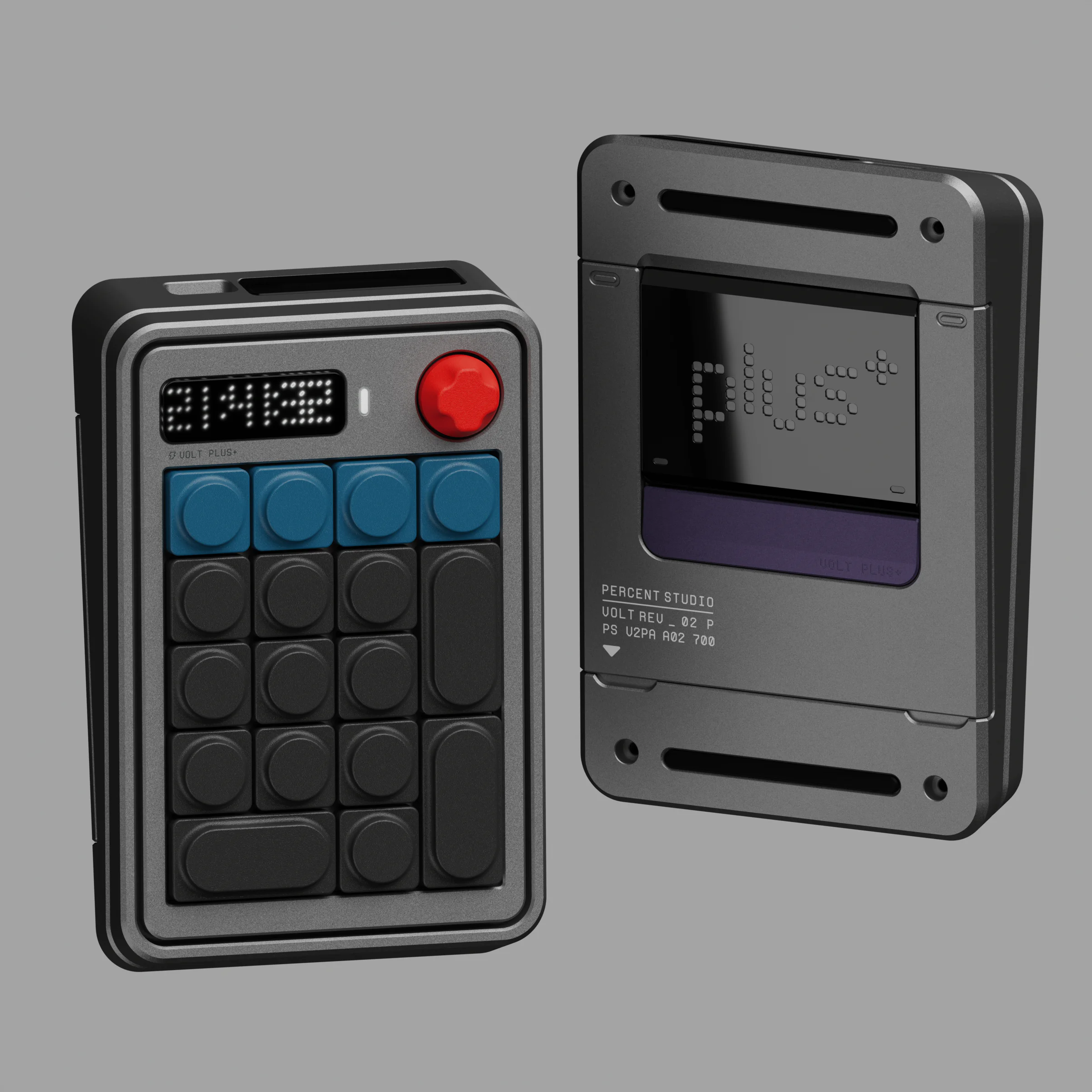

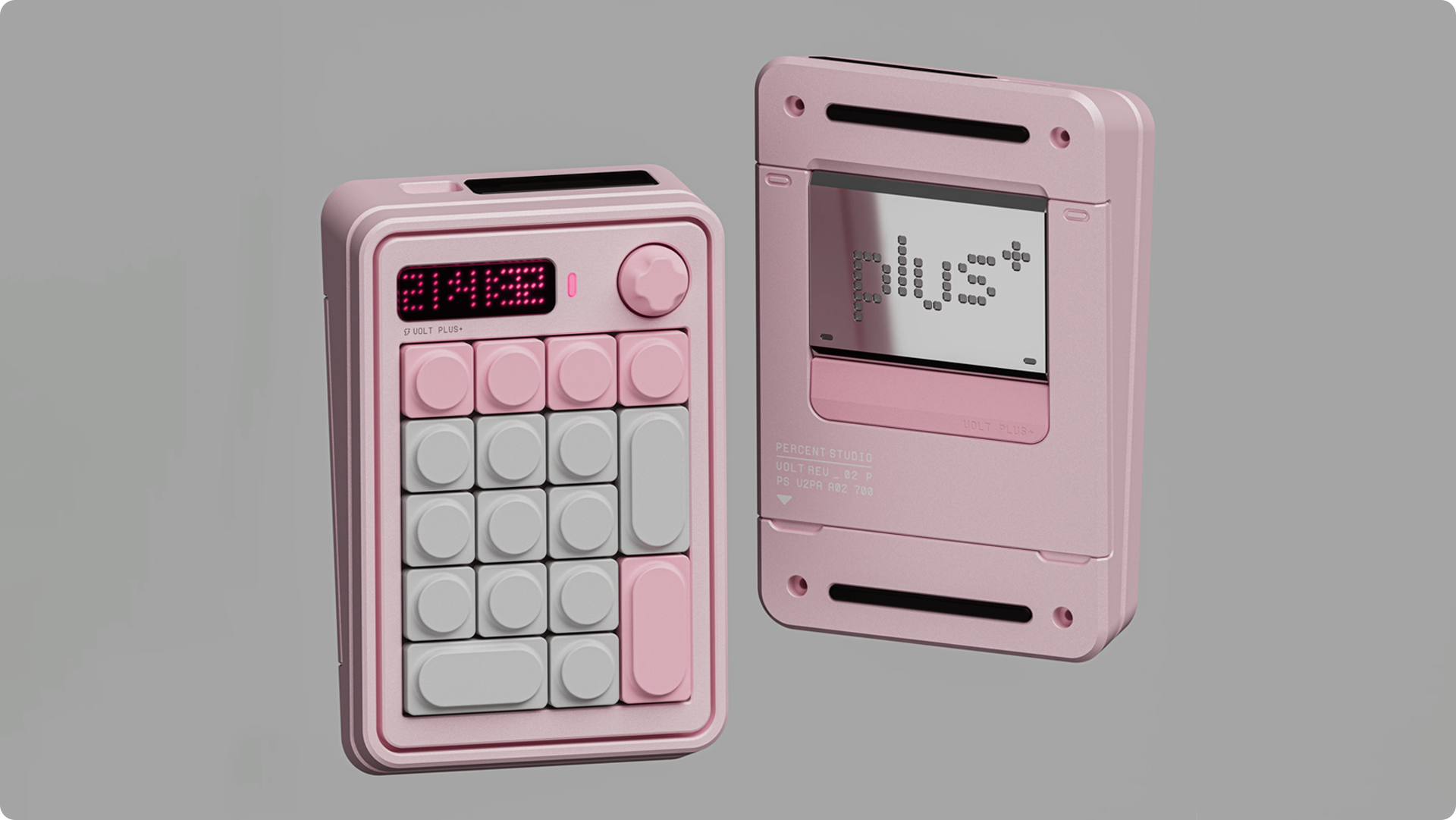

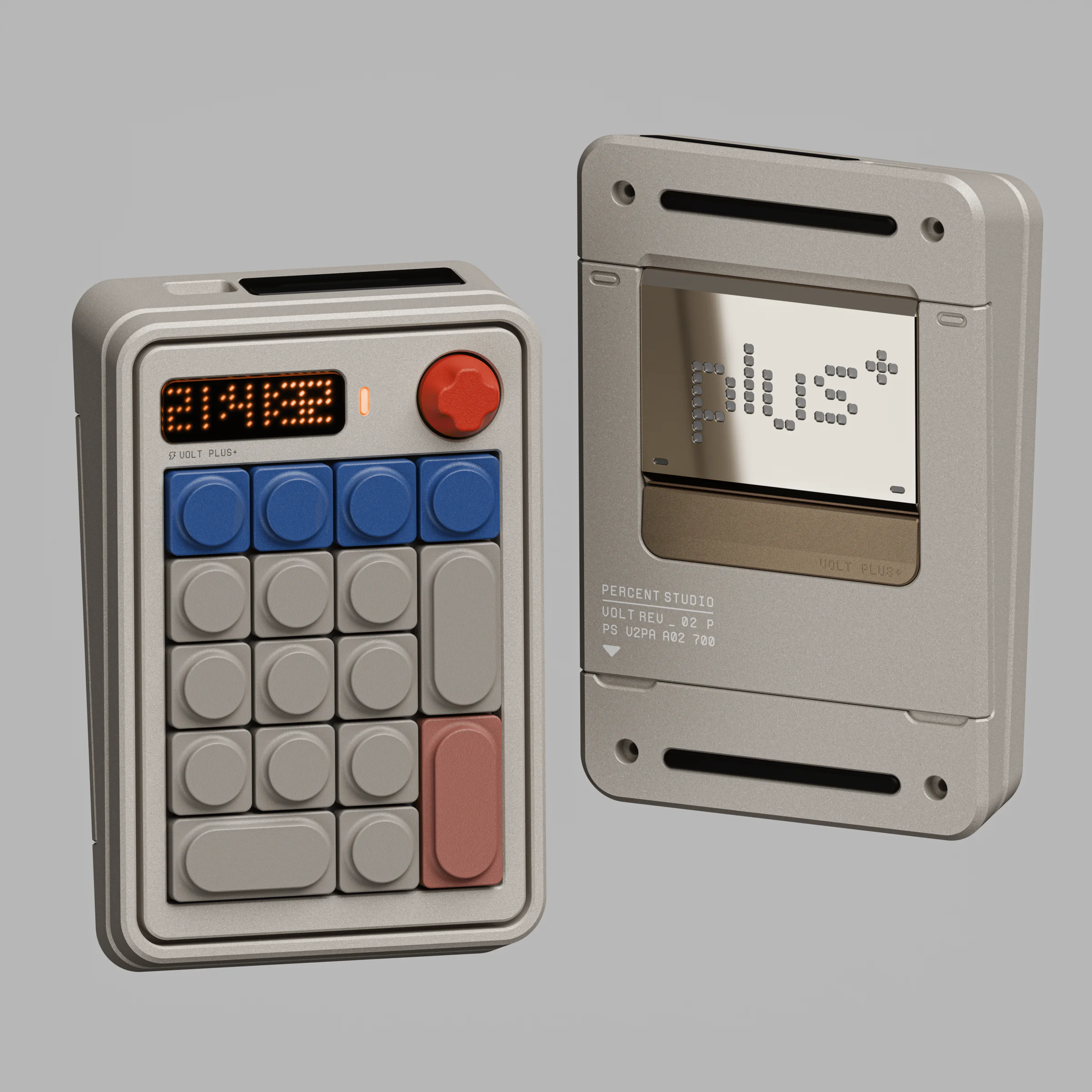

Volt Plus+ Custom Mechanical Number Pad

Please note:

• The Volt Plus+ may tilt when pressure is applied to a single corner due to its rubber feet design. This tilting does not occur during regular use and is not considered a quality issue.

• This product only supports wired connectivity.

• This is a barebones kit. The switches and keycaps shown in the product images are for illustration only and are not included. Please see the content list below for all included items.



Sale & Fulfillment

• This is a pre-order item.

• Orders placed between January 6th and February 4th will be shipped between February 5th and February 25th.

• Orders placed after February 5th will be fulfilled within 3 weeks of purchase.

• The Volt Plus+ is available in limited quantities. Sales begin at 0:00 EST on January 6th, 2025, and will end when sold out.

• Early-bird pricing of $99.99 is available for purchases made between January 6th and January 20th.

Important Information Before Buying

• Product Introduction and Build Guide

• Quality Standard

• Shipping Policy/Guide

• Refund Policy

Product Overview

• The Volt Plus+ is a custom mechanical number pad featuring a gasket-mount structure and CNC-machined full aluminum case

• Designed by Percent Studio and manufactured by OwLab

• Features a 6-degree typing angle with a front height of 22.4mm

Specifications

• Equipped with a 1.2mm non-flex cut hotswap PCB with south-facing per-key RGB

• Includes a non-flex cut FR4 plate

• Wired connectivity only

• VIA compatible

Unique Features

• Incorporates a 20 × 7 dot-matrix LED display panel

• Features built-in clock function and Pomodoro timer for productivity

Further notes and instructions:

1. To change your Volt Plus+ color selection, you don't need to remove the previous choice from your cart. Simply go back to the product page and add your new color choice to the cart.

2. Please do not add other products to your cart along with this number pad. Otherwise, you will be prevented from checking out.

3. All products on this page are final sales. No changes or cancellations will be made after an order is placed.

4. Renders are for reference only. Please note that actual product colors may vary under different lighting conditions. Color differences between the render and the actual product will not be considered a quality issue.

PCB Layout

Content List

• Volt Plus+ case, pre-installed with:
  • 1x Rotary encoder PCB, 1x Encoder bracket, 1x Encoder FPC
  • 1x Button cell battery
  • 1x Type-C daughter board
  • 1x LED matrix, 1x LED matrix cover plate
  • 1x NumLock indicator silicone light guide
  • 1x PC battery compartment cover, 1x Signal window cover plate
  • 2x Rubber feet
• PCB + Plate kit, pre-assembled with:
  • 1x FR4 non flex-cut plate
  • 1 set of standoffs and screws
  • 1x Hotswap PCB
• Foam set:
  • 1x Anti-static pad
  • 1x Case foam
  • 1x PET sheet
  • 1x PE sheet
  • 1x Plate foam
• Accessory package:
  • 4x Gasket strips
  • 1x Type-C cable (5Pin)
• Free gifts (Disclaimer: If any of these gifts are missing or damaged, they will not be re-shipped or replaced):
  • Stabilizers
