Neo65 Core Plus Custom Mechanical Keyboard
Please note:
- Spray-coated Spark White contains micro-glitter.
- Renders are for reference only. Please note that actual product colors may vary under different lighting conditions.
- Color differences between the render and the actual product will not be considered a quality issue.
- Purchase indicates acceptance of the above terms.
Essential Information Before Purchasing:
- Please do not add any additional items to your cart with this keyboard. Doing so will prevent you from completing checkout.
- Limit to one unit per order. If you wish to purchase multiple units, please place separate orders. If you're placing multiple orders for delivery to different addresses, please use separate accounts for each order. Our logistics system automatically consolidates all orders under the same account and ships them to a single destination.
- All products on this page are final sales. No changes or cancellations will be made after an order is placed
Regional Vendors：
Canada: Unikeys, Keybay, deskhero., minokeys
Europe: Keygem, Coffeekeys (Italy), Monacokeys (Germany), EloquentClicks(Spain), Delta(French)
Singapore: Qwertyqop
United Kingdom: Prototypist
Australia: BerserKeys, Switchkeys
United States: Divinikeys, LumeKeebs, Tiny
South Korea & Japan : Swagekeys
Taiwan: Inpad
Southeast Asia: MOKB (Vietnam), Mecha (Malaysia), The keebs store(Vietnam), Aiglatson Studio(Thailand)
Fulfillment Status：
Pairs well with
This is a pre-order product.
Estimated Fulfillment Time: 4 weeks
One-Year Functionality Warranty
Neo65 Core Plus
Introducing the Neo65 Core Plus from Neo Studio: a 65% keyboard refined through our O-ring and gasket dual-mounting structure. We've added a 3D copper weight into the unibody aluminum case and meticulously tuned its internal structure for better acoustics. The result is a natural, foam-free sound and a crisp, responsive keystroke experience that elevates every session without extra bulk.
Enhanced Sound Chamber

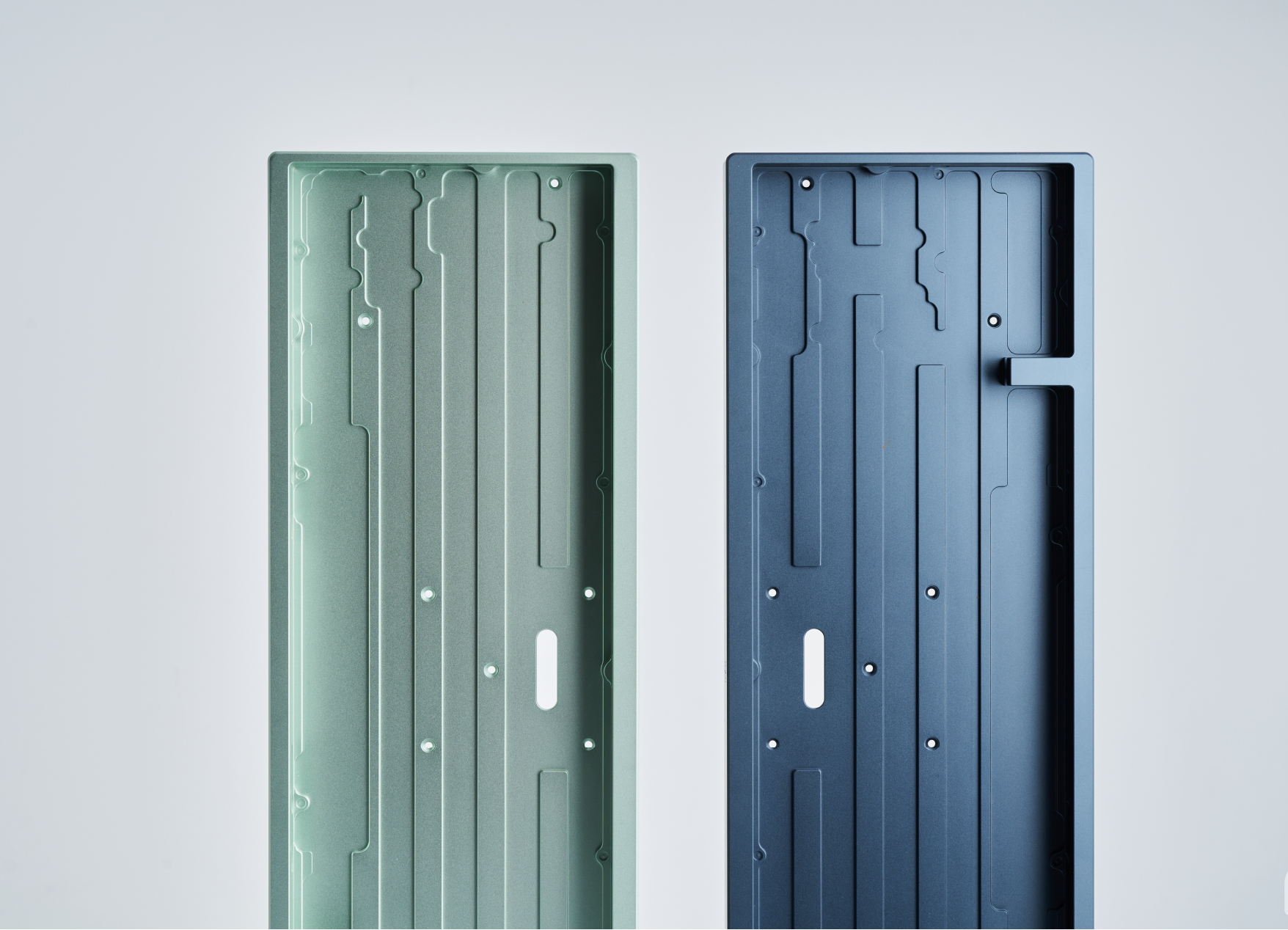

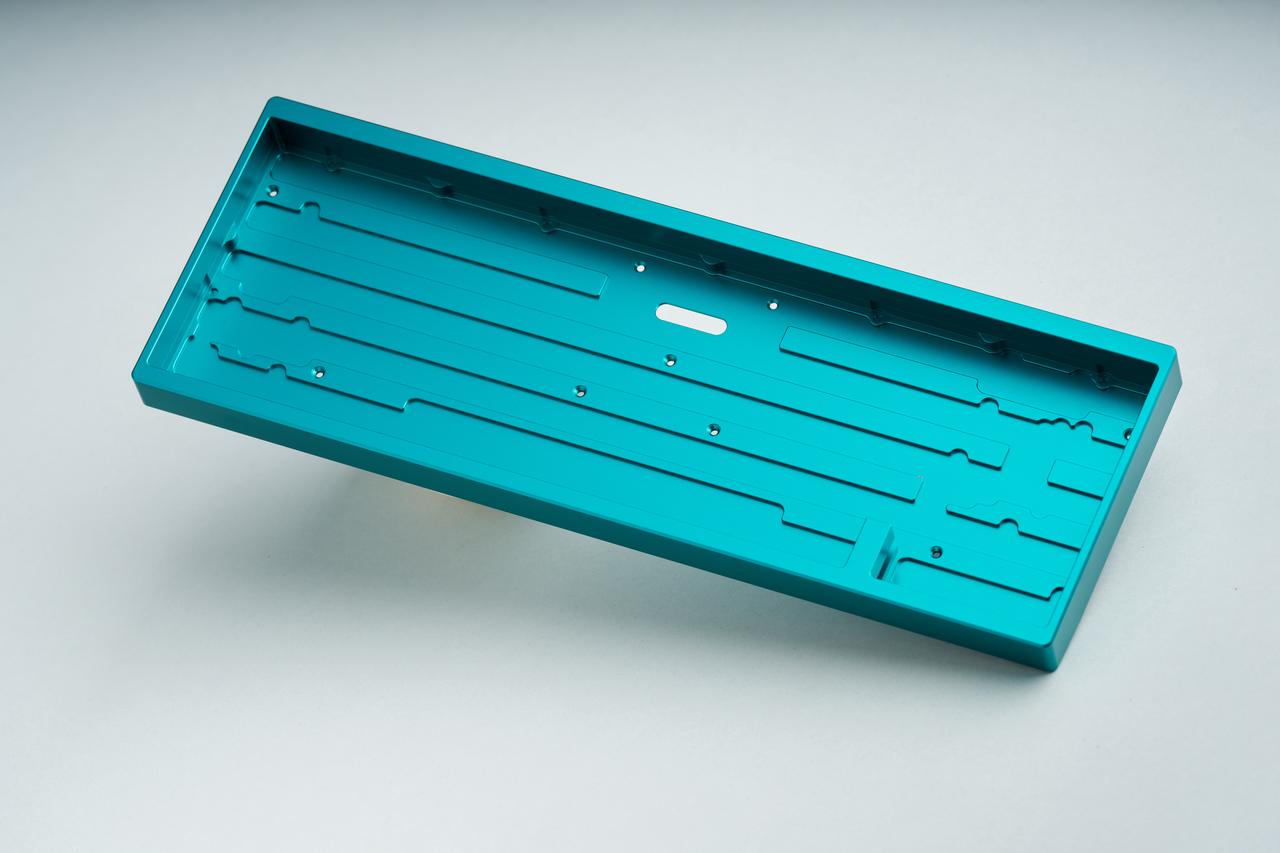

Experience a crisper, brighter sound profile with the Neo65 Core Plus. We've perfected the bottom case's sound chamber through resonance principles and precision port placement to eliminate hollow echoes. Unlike the deeper tones of a copper bottom case, this aluminum version delivers a bright, lively tone—making every keystroke sound more refreshing.

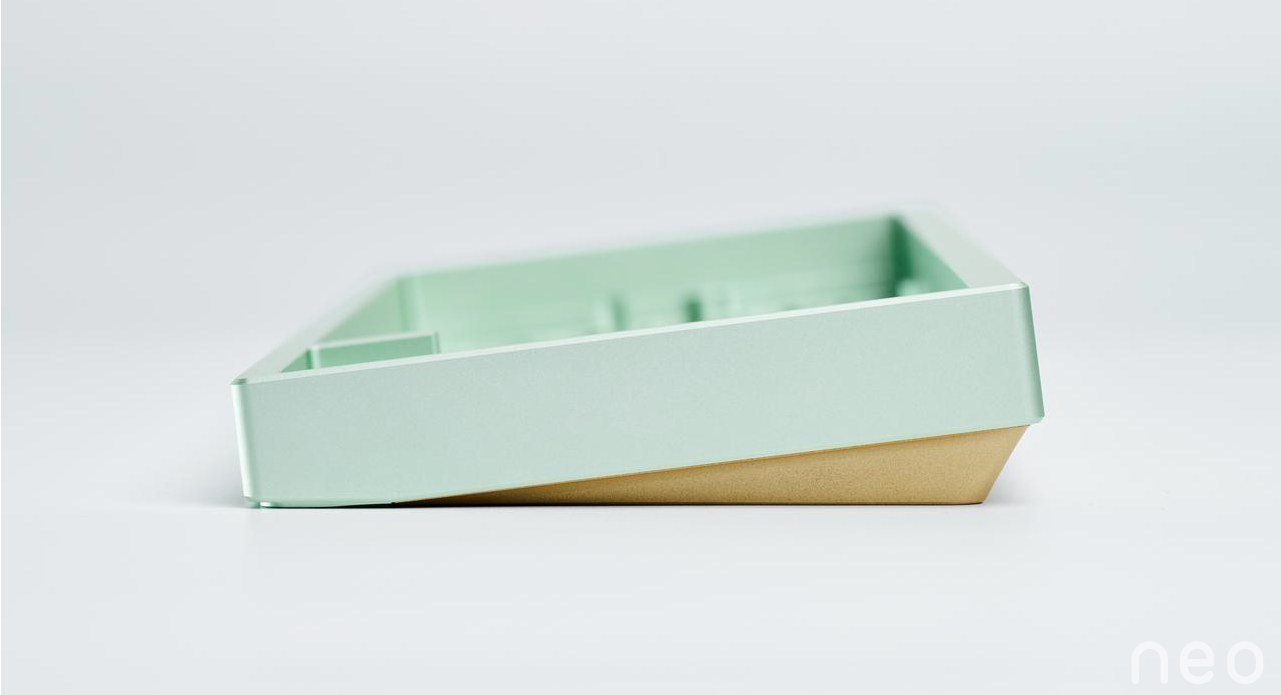

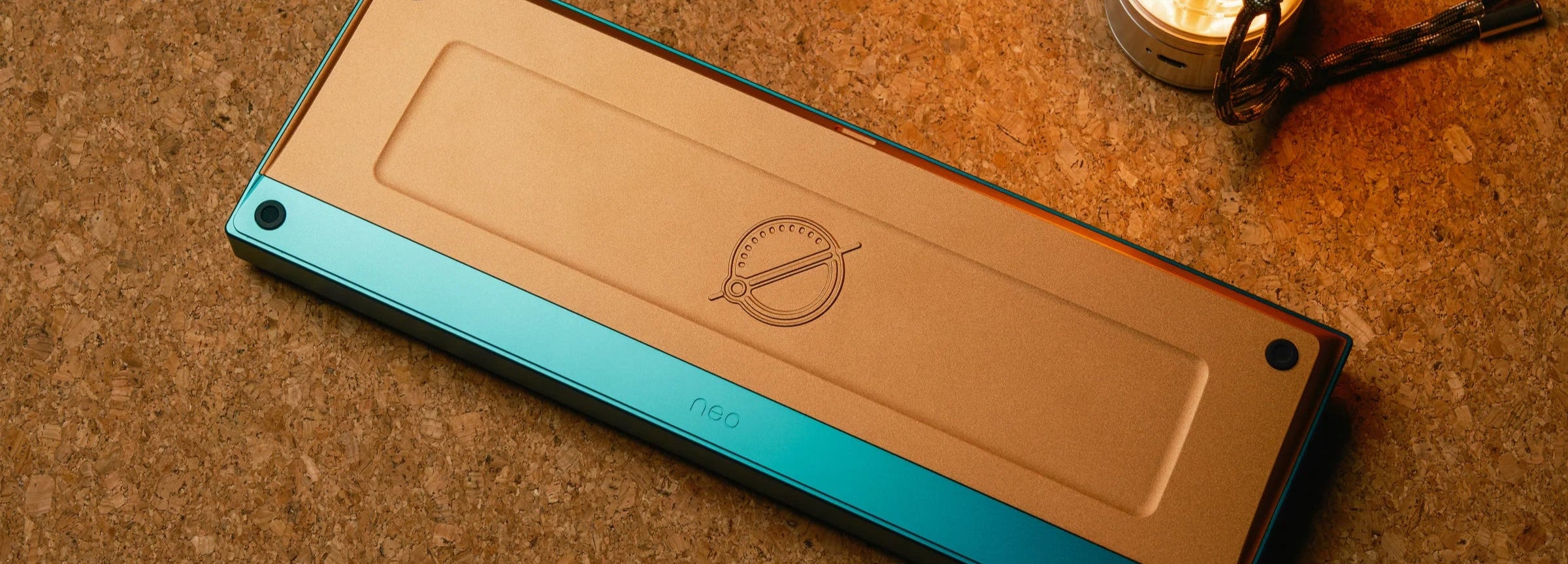

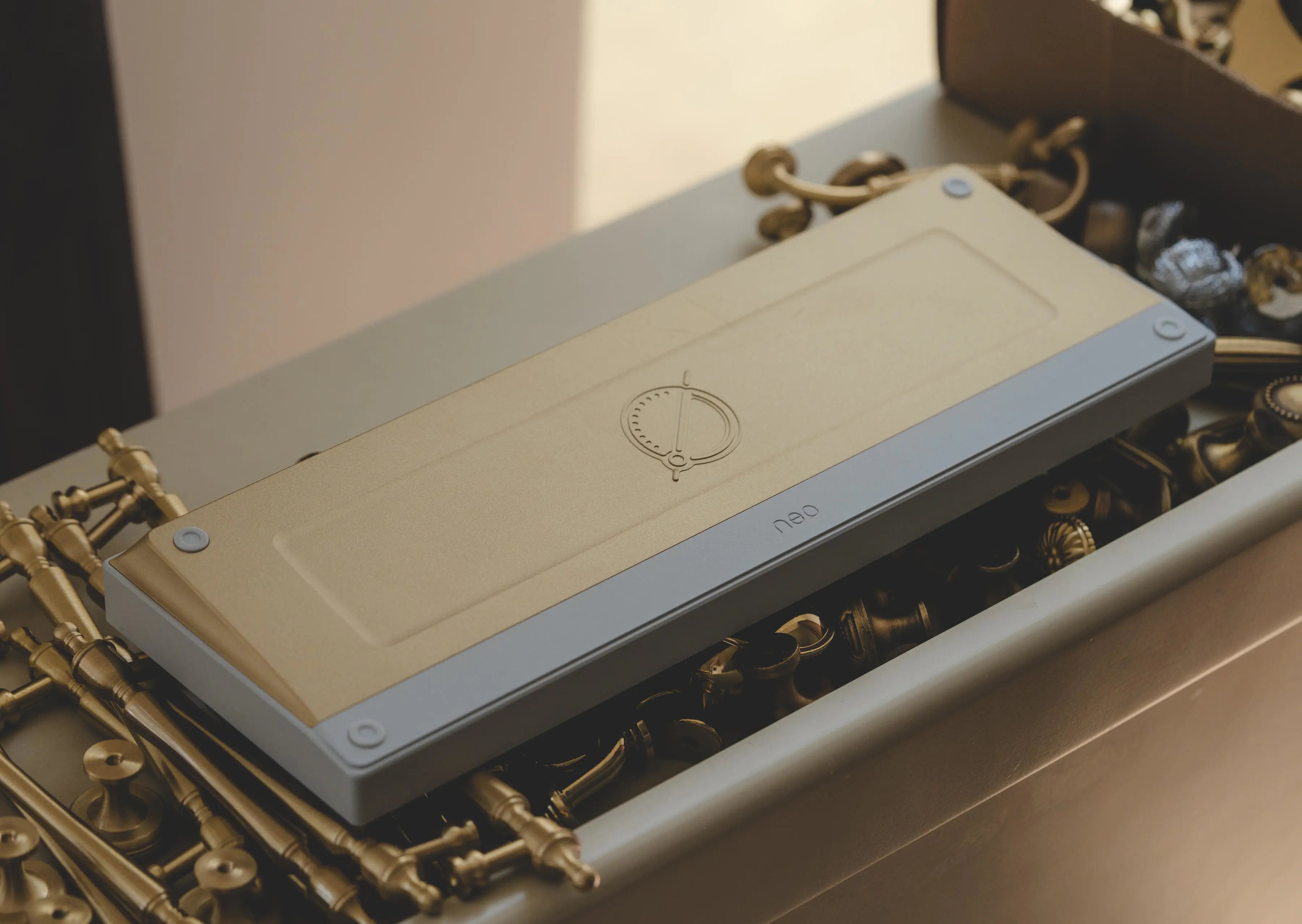

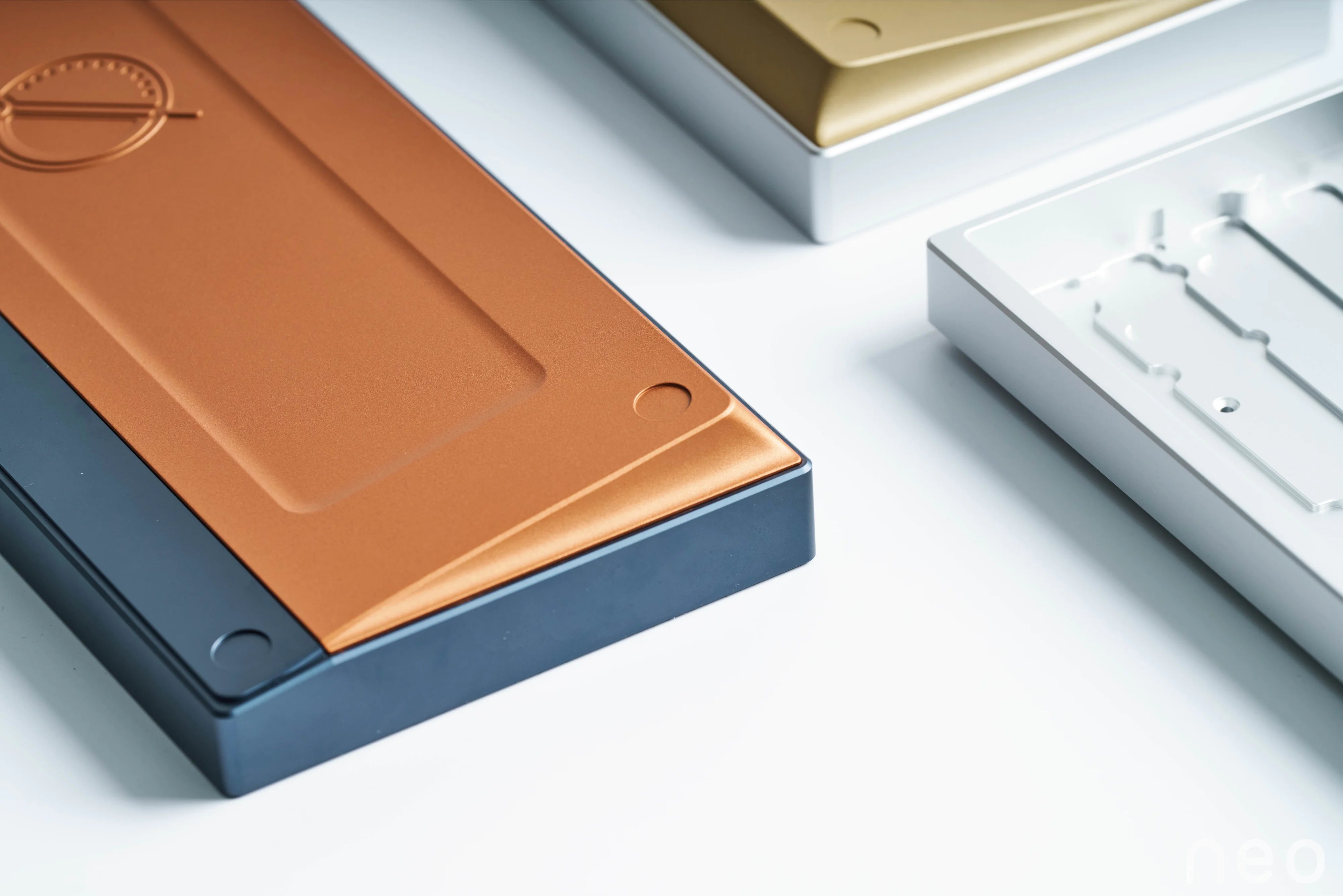

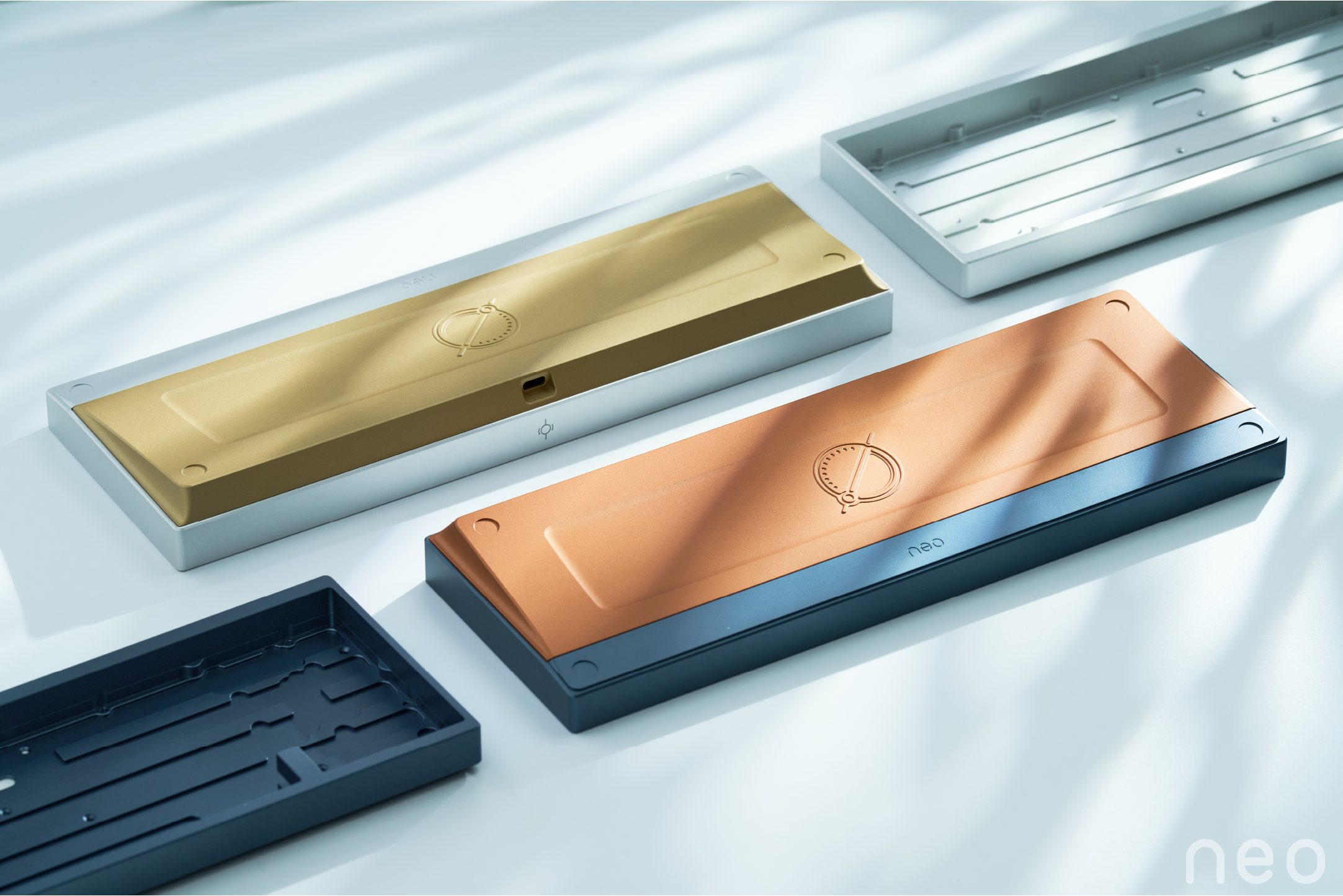

3D Copper Weight
The substantial 3D copper weight on the Neo65 Core Plus anchors the keyboard both visually and functionally, dampening unwanted vibrations during typing. This adds a delightfully solid heft compared to the previous Neo65 and delivers a purer, more transparent key-on-case tone—all without requiring any foam.
Elevated Craftsmanship
We’ve elevated our anodizing process to achieve an ultra-fine, silky finish. With lower surface roughness, you’ll notice and appreciate the premium look and feel from every angle and every touch.

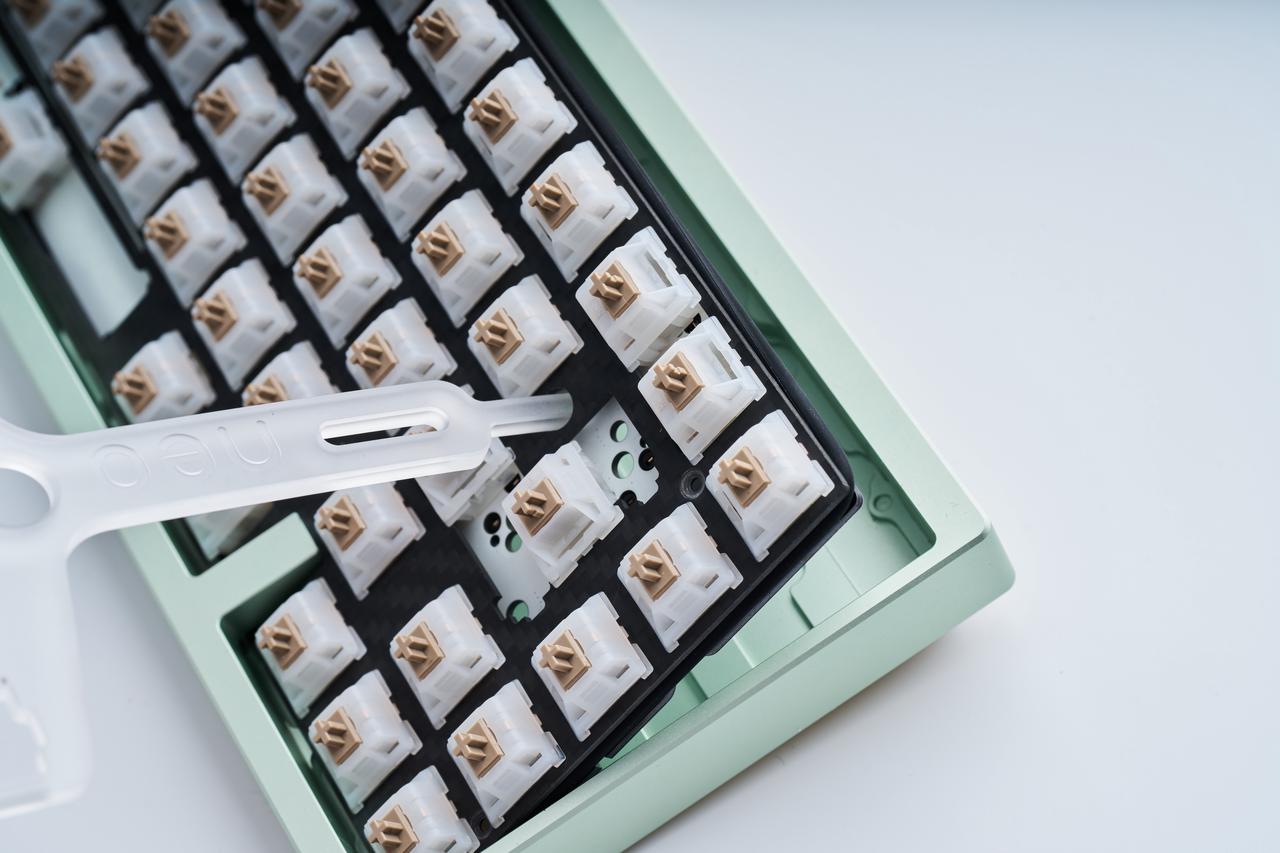

3-Second Disassembly

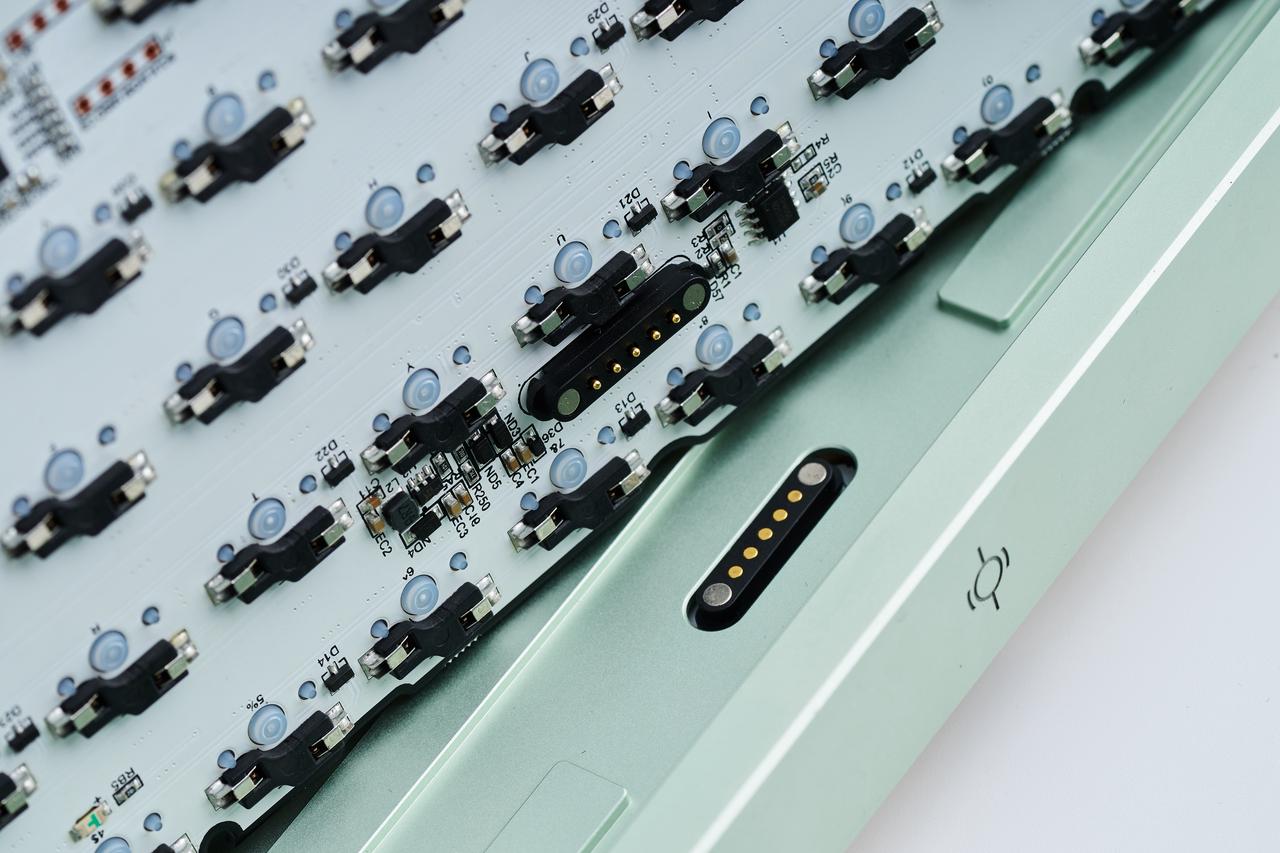

Enjoy effortless assembly with our innovative Lock-n-Pull Mechanism + Magnetic Connectors. The pogo-pin design allows you to remove the PCB in seconds without risking cable damage.

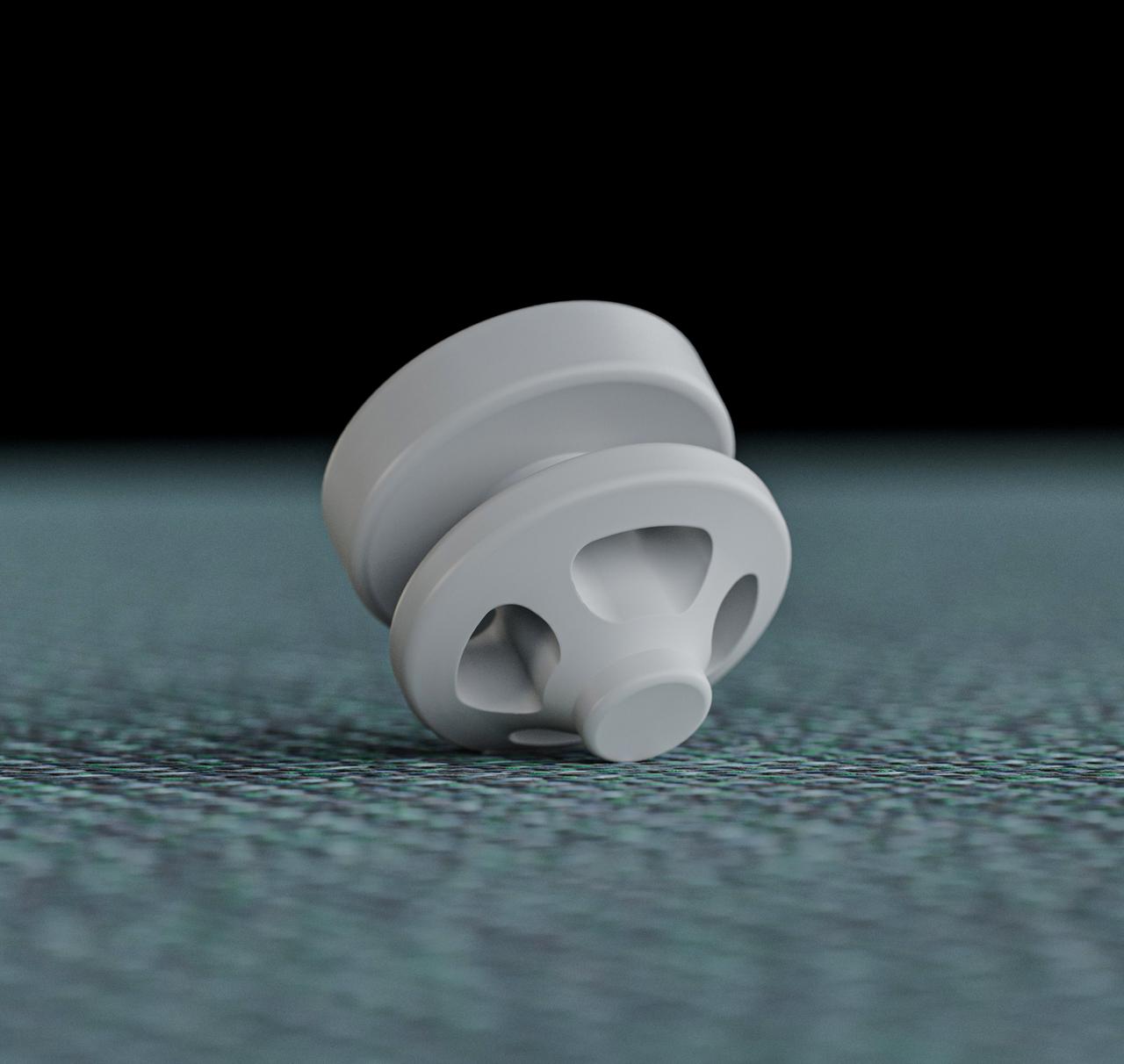

Dual-Mounting System with Upgraded Gasket
- Support both PCB gasket mount and gummy O-ring mount
- Our specially designed gaskets make installing the PCB and plate assembly into the case significantly easier
- The sloped-slot on the gasket distributes pressure evenly across the surface instead of concentrating it at one point, providing consistent cushioned rebound and stable support with every keystroke
Neo65 Core Plus: Next Level
Heavier Copper Weight
The Neo65 Core Plus features a larger, denser copper weight than the original Neo65. This provides a more solid typing experience with enhanced stability. The additional mass also improves acoustic resonance and overall typing feel.
High Cost Performance
Compared to the Neo65 Cu, the Neo65 Core Plus comes at a more affordable price while maintaining premium features. It provides exceptional value for enthusiasts who want quality without overspending. Experience high-end craftsmanship at a more accessible price point.
Craftsmanship Upgrade
The Neo65 Core Plus features a refined, ultra-smooth surface that delivers a premium feel. With the new POGO-pin connectors, disassembly is quicker and more effortless than ever. Every interaction with the keyboard feels both seamless and built to last.
Essential Information
Specifications
Typing angle: 7 degree
Front height: 18.1mm
Size: 312.7mm * 110.7mm
Tri-mode Hotswap PCB
- 1.6mm thick, non-flex cut
- Support USB-C, Bluetooth, and 2.4GHz connection
- Support both ANSI and ISO layout
- VIA Compatible
- NKRO
- NO Per-key RGB
Solder PCB
- 1.6mm thick, non-flex cut
- USB-C connection only
- Support both ANSI and ISO layout
- VIA Compatible
- NKRO
- NO Per-key RGB
Wired Hotswap PCB
- 1.6mm thick, non-flex cut
- USB-C connection only
- Support both ANSI and ISO layout
- VIA Compatible
- NKRO
- NO Per-key RGB
- Polling rate: 1000Hz
Content List
Keyboard Case
- For orders with tri-mode PCBs, two 2200 mAh batteries come pre-installed
- For orders with wired PCBs, two stainless steel fillers come pre-installed
- For orders with solder PCBs, two foam fillers come pre-installed （If you purchase the stainless steel battery compartment fillers in the extra part page, foam fillers will no longer be included.）
PCB Kit
- PCB of your choice
- 1x PE sheet
- 1x PCB Foam
- Tri-mode PCB comes with a 2.4Ghz dongle
Plate of your choice
Poron case foam
PCB Daughterboard and magnetic connectors - installed
Gaskets
30-duro O-ring
Rubber feet in 2 colors
Backup screws
Stand-offs included with the hotswap PCB
Free Gifts:（Disclaimer: If any of these gifts is missing or is damaged, they will not be re-shipped or replaced.）
- Keyboard carrying case
- 1x Keycap & Switch puller
- 1x Screwdriver
- 1 set of PCB clip-in NeoStab
- USB-C cable
- Plate fork
