Neo60 Core Custom Mechanical Keyboard
Product Highlights
Product Layout
Please note:
- Spray-coated White and Nebula cases contain micro-glitter.
- Renders are for reference only. Please note that actual product colors may vary under different lighting conditions. Color differences between the render and the actual product will not be considered a quality issue.
- Only the Solder PCB supports plateless builds.
- Dusk features random gradient mixtures, making each unit unique.
- Specific color selections for Dusk are not available.
- Dissatisfaction with Dusk's iridescent colors is not a valid reason for return.
- Dusk colors may include single or multiple variations as shown in the render, with varying shades and intensities.
Important Information Before Buying:
- Advanced feature in ANY key is not supported. LS(, RS), LC(, and RC) can work fine in wired mode, but may not work correctly in wireless mode when held briefly and pressed together with another key.
- Do not clean the copper bottom case with alcohol or rub it hard. Otherwise, you may damage the anti-oxidation coating.
- The tri-mode PCB on this sale page comes with two 2200 mAh batteries.
- To modify your Neo60 Core specifications, please don't adjust quantities in the shopping cart. Instead, return to the product page and add the new option to your shopping cart again.
- All PCBs are VIA compatible.
- Please do not add anything other than Neo60 Core extra parts to the cart along with this keyboard. Otherwise, you will be prevented from checking out.
- Incomplete orders (those lacking a plate, PCB, or other essential keyboard components) will be canceled. Buyers will be responsible for any resulting fees and transaction costs.
- Limit to one unit per order. If you wish to purchase multiple units, please place separate orders. If you're placing multiple orders for delivery to different addresses, please use separate accounts for each order. Our logistics system automatically consolidates all orders under the same account and ships them to a single destination. This feature helps combine extra parts orders and allows you to take advantage of free shipping.
- All products on this page are final sales. No changes or cancellations will be made after an order is placed.
Fulfillment Progress
Free Shipping with Your Keyboard
This is a pre-order product.
Estimated Fulfillment Time: 4 weeks
One-Year Functionality Warranty
Neo60 Core Custom Mechanical Keyboard
Front Design
The Neo60 Core features the unibody case design and ultra-slim side bezels. These design elements highlight the keycaps' texture while making the keyboard more compact and travel-friendly.
Side Design
Unlike the Neo Cu series, the Neo60 Core features a simple, clean side profile with an inward-sloping edge. This design complements the ultra-slim front bezels, creating a sleek, cohesive appearance while making the keyboard easier to lift.
Back Design
The Neo60 Core's back design features a larger weight compared to the Neo65, improving both weight balance and visual harmony with its screwless design.
The orbit logo from Neo65 has been carried over with a more practical function—it now serves as the cover plate for the USB dongle storage, elegantly combining aesthetics with functionality.
Lock-n-Pull Mechanism & Magnetic Connectors
Although the easy disassembly structure on the Neo65 was relatively convenient, dealing with the ribbon cable during assembly is still challenging. We've solved this by upgrading the Neo60 Core with magnetic connectors and introducing an innovative method for PCB and plate removal.
Every Neo60 Core Core comes with a specially designed tool. One end of this tool is a 3.5mm thick plate fork, helping you support the plate when installing switches to ensure proper installation, especially when building the keyboard without plate foam.The opposite end of the tool serves as a disassembly aid. When you want to disassemble the keyboard after building it, simply remove the keycaps above the disassembly slot, insert the tool, and pull the PCB and plate easily out from the case. This straightforward approach simplifies disassembly, making maintenance and customization effortless.
Dual-Mounting System
- PCB Gasket Mount
For the Core series, a robust gasket mount structure is essential. We have optimized the gasket positioning in the Neo60 Core to deliver the best possible acoustic performance. Given that the gasket mounting points are located directly on the PCB, the Neo60 Core also supports a plateless build with a soldered PCB.
- O-ring Mount
The Neo60 Core also features a gummy O-ring mount option. This setup firmly secures the PCB and plate while providing excellent sound sealing for the edge keys, creating a more consistent typing feedback and acoustics.
3-Second Disassembly
Magnetic Connectors
Magnetic connectors and innovative method for PCB and plate removal
Lock-n-Pull Mechanism
Lock-n-Pull Mechanism enables 3-Second Disassembly

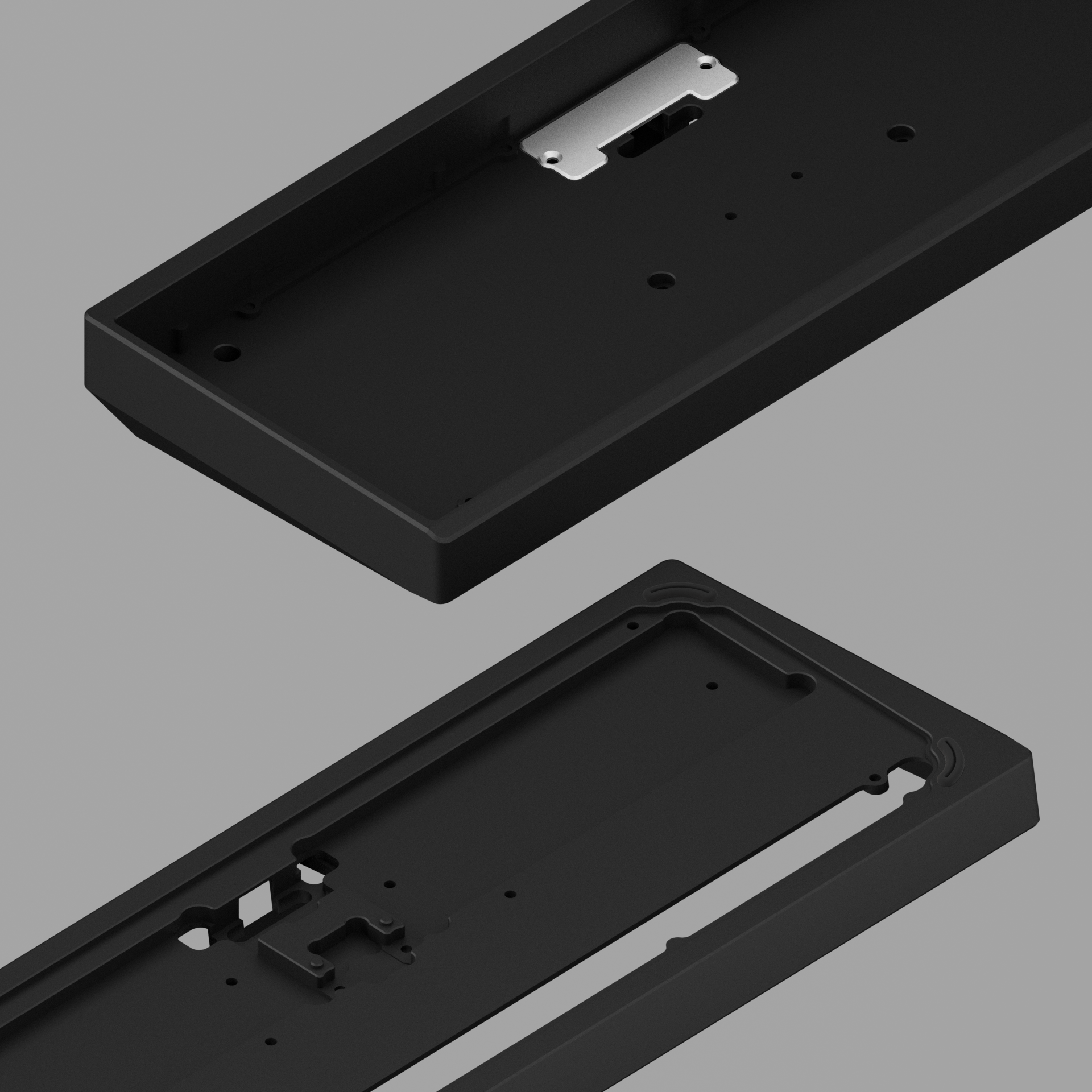

Unibody Case
Simple and easy to assemble and disassemble
PCB Specs & Dimensions
Specifications
- Typing angle: 8°
- Front height: 18.2mm
- Size: 108.8mm * 292.9mm
- Weight: 1.53kg after build
PCB Options - All VIA-compatible
The polling rate: 1000Hz
Tri-mode Hotswap PCB
- 1.6mm thick, non-flex cut
- Support USB-C, Bluetooth, and 2.4GHz connection
- Support both ANSI and ISO layout
- NKRO
- NO Per-key RGB
Wired Hotswap PCB
- 1.6mm thick, non-flex cut
- USB-C connection only
- Support both ANSI and ISO layout
- NKRO
- NO Per-key RGB
Solder PCB
- 1.6mm thick, non-flex cut
- USB-C connection only
- Support both ANSI and ISO layout
- NKRO
- NO Per-key RGB
Content List
Keyboard Case
- Includes one pre-installed weight of your choice
- For orders with tri-mode PCBs, two 2200 mAh batteries come pre-installed in the battery compartment
- For orders with wired PCBs, two stainless steel fillers come pre-installed in the battery compartment
- For orders with solder PCBs, two foam fillers come pre-installed in the battery compartment. If you purchase the stainless steel battery compartment fillers in the extra part page, foam fillers will no longer be included.
PCB kit
- PCB of your choice
- 1x PE sheet
- 1x PCB Foam
- Tri-mode PCB comes with a 2.4Ghz dongle
Plate of your choice
Poron case foam
PCB Daughterboard and magnetic connectors - installed
Gaskets and O-ring (30 duro)
Rubber feet in 2 colors
Stand-offs and backup screws
Plate fork (aka. the disassembly tool)
Free Gifts:(Disclaimer: If any of these gifts is missing or is damaged, they will not be re-shipped or replaced.)
- Keyboard carrying case
- 1x Keycap & Switch puller
- 1x Screwdriver
- 1 Set of PCB clip-in NeoStab
- USB-C cable
