Neo98 Custom Mechanical Keyboard

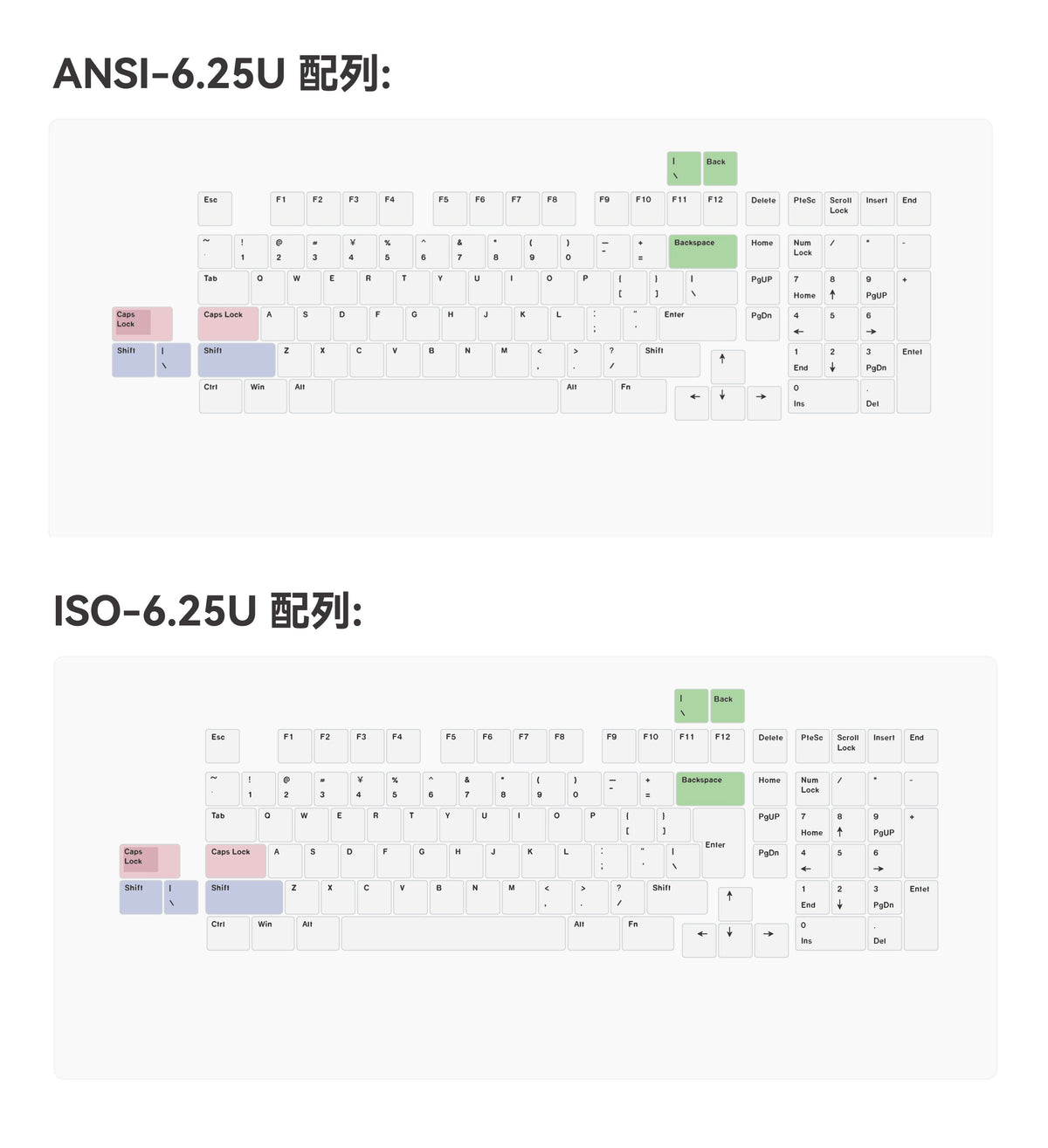

Product Layout
Please note:
- Renders are for reference only. Please note that actual product colors may vary under different lighting conditions. Color differences between the render and the actual product will not be considered a quality issue.
Important Information Before Purchasing:
- Please add only Neo98 extra parts to your cart with this keyboard. Adding other items will prevent checkout.
- Orders missing essential components (such as plates, PCBs, or other required parts) will be canceled, and buyers will be responsible for all associated fees and transaction costs.
- One unit per order only. For multiple units, place separate orders. If shipping to different addresses, use a different account for each order. This is because our logistics system automatically combines all orders under the same account and ships them to one address—a feature that enables consolidation of extra parts orders and helps qualify for free shipping.
- All products on this page are final sale items. Once an order is placed, no changes or cancellations will be accepted
Fulfillment Status
Free Shipping with Your Keyboard
This is a pre-order product.
Estimated Fulfillment Time: 6 weeks
One-Year Functionality Warranty
Neo98 & Neo75
Born from community passion, the Neo98 answers years of anticipation, while our Neo75 option offers compact versatility. Both embody our design philosophy: understated elegance, exceptional detail. Choose the layout that fits your style.
The Crowning Glory

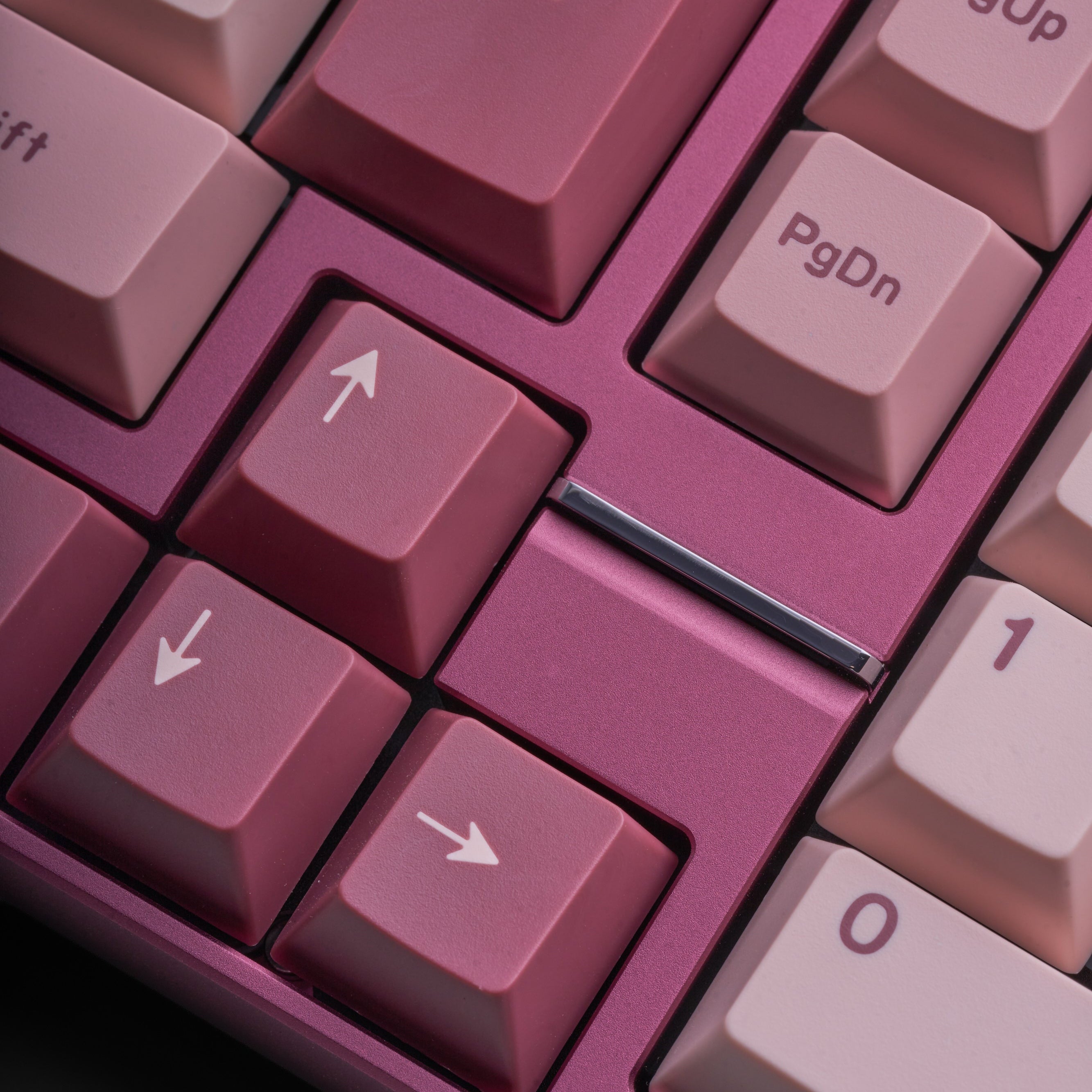

The design is minimalist in appearance, yet every detail is meticulously engineered. The badge is crafted from mirror-polished stainless steel, with every surface meticulously ground. Like a platinum ring, it sits nested into the keyboard with quiet precision.

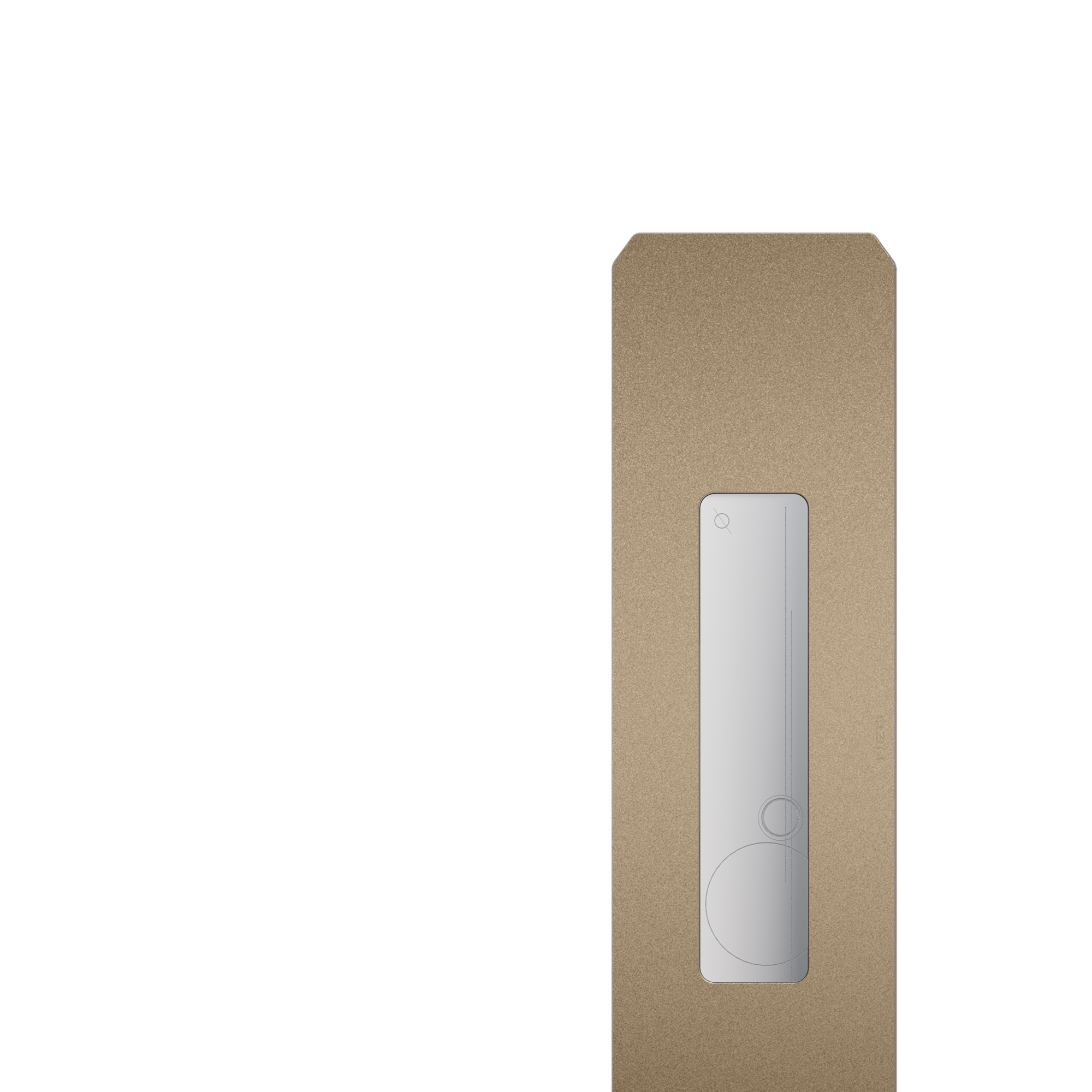

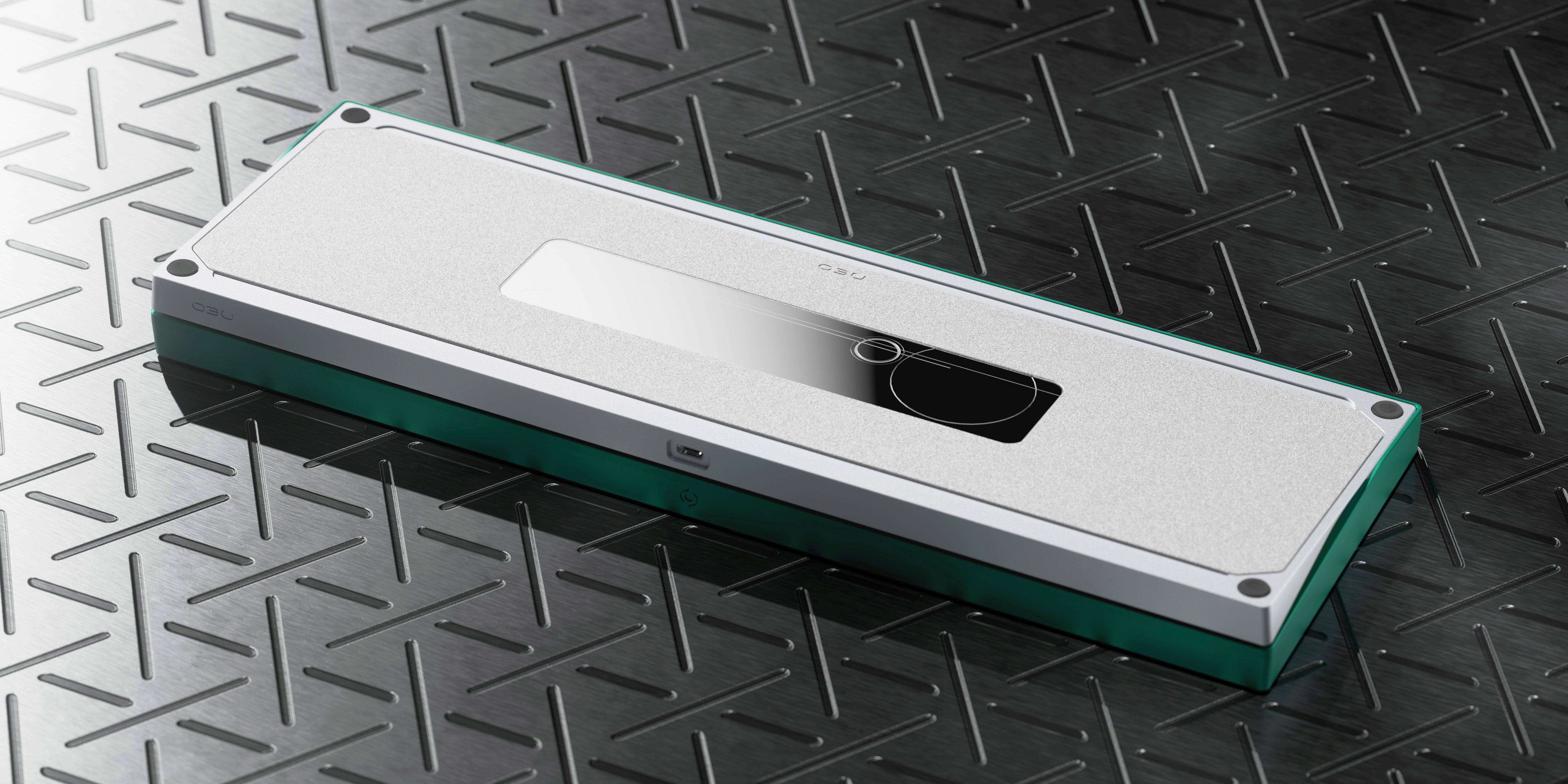

Optional Weight
Featuring a generously sized stainless steel weight, available in both mirror PVD and spary-coated finish options.

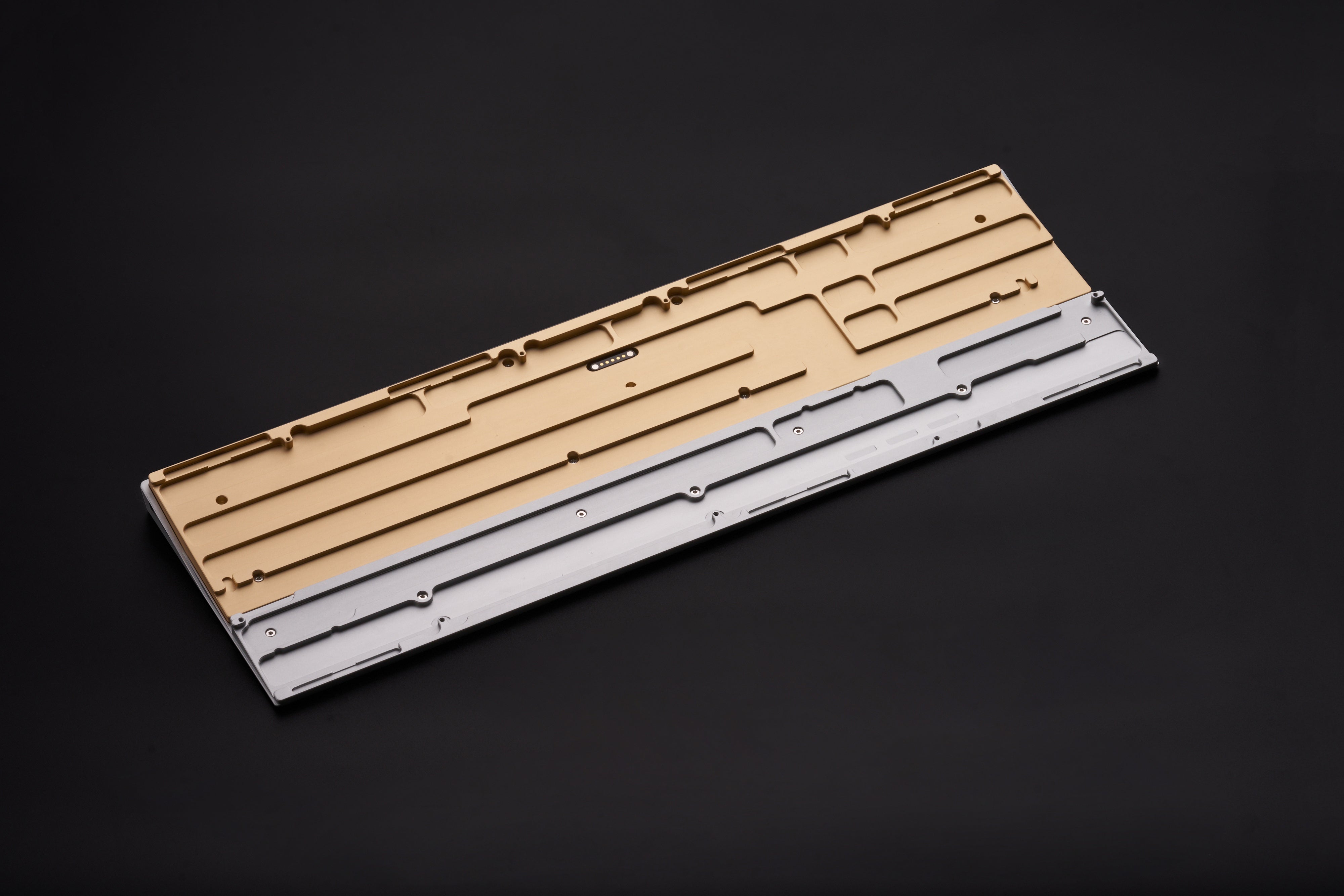

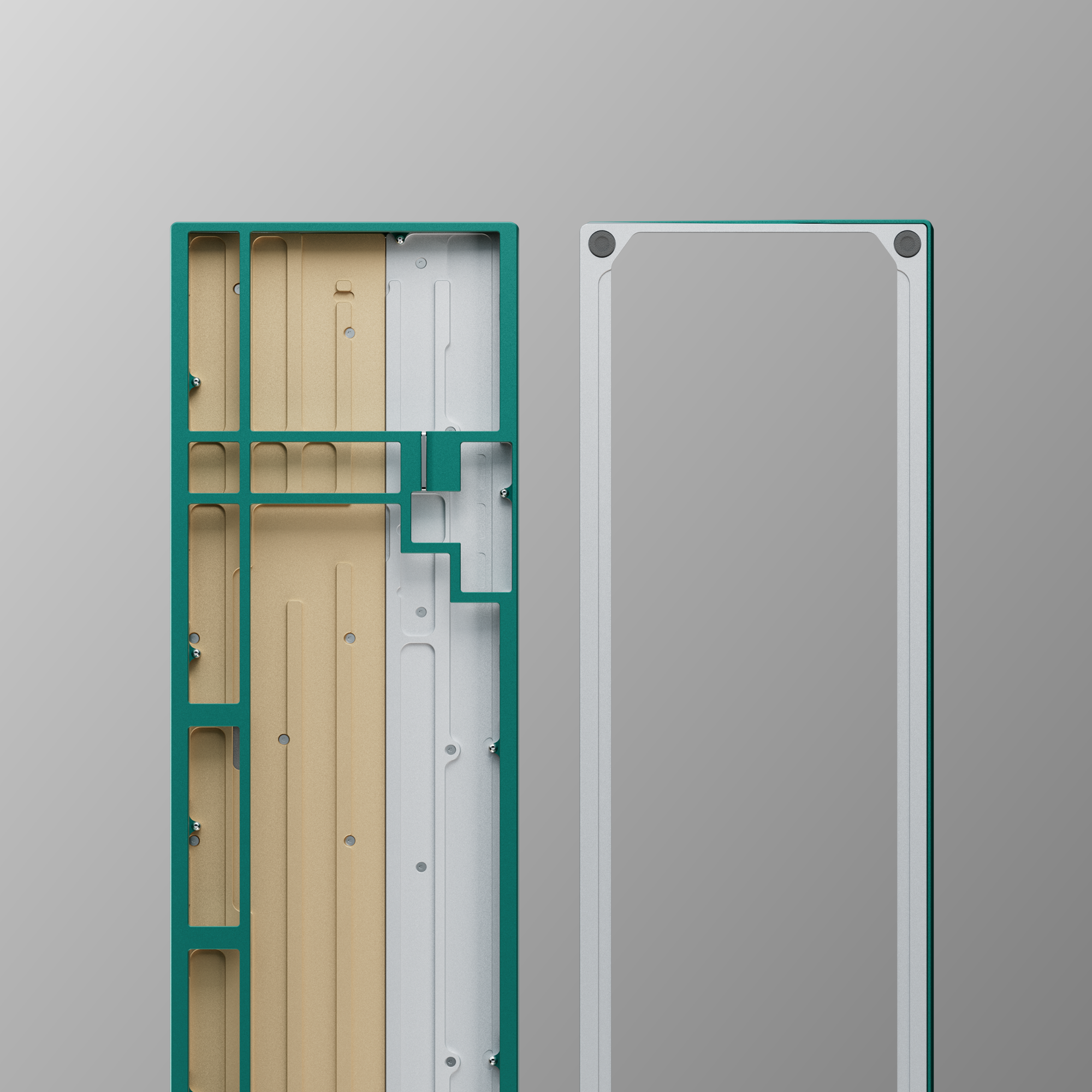

Bottom Case Acoustic Chamber
To suppress the hollow cavity resonance from the bottom case, we adopted a chamber-segmented design. This reduces vibration frequency and enhances overall acoustic performance.

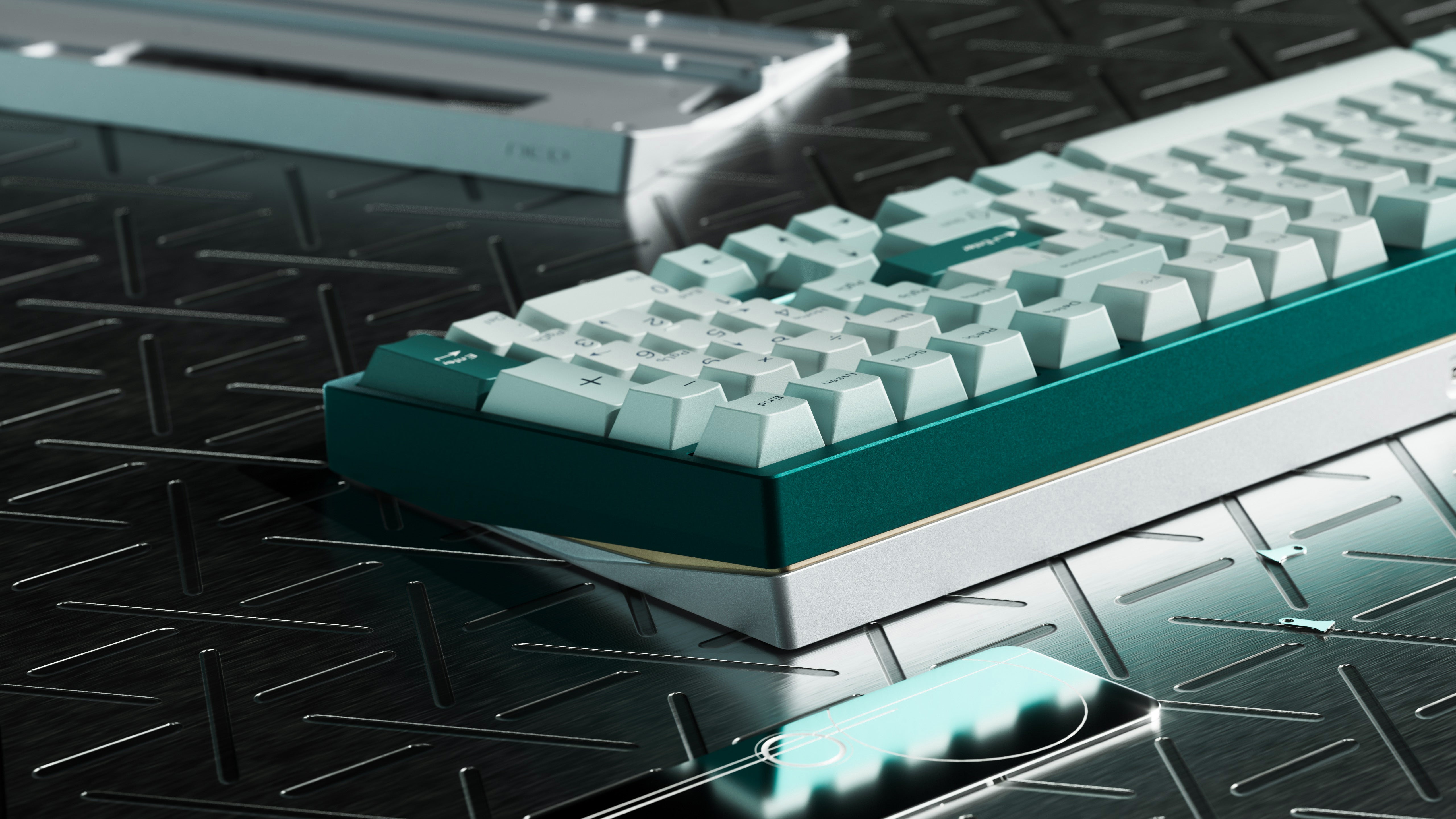

Forcebreak
We've added a forcebreak layer at the contact points between the top and bottom cases, creating a soft barrier between the metal surfaces to dampen vibration noise.
Structure
For Neo98 and Neo75, we use the well loved Poron Gasket design from the Neo80 Cu.
Traditional poron gaskets rely on adhesive, which makes replacement difficult over time and often leaves residue. Our grooved structure eliminates the need for adhesive, holding the poron securely in place and making replacements easy.
Poron Gasket Mount
Silicone Gasket Mount
Top Mount

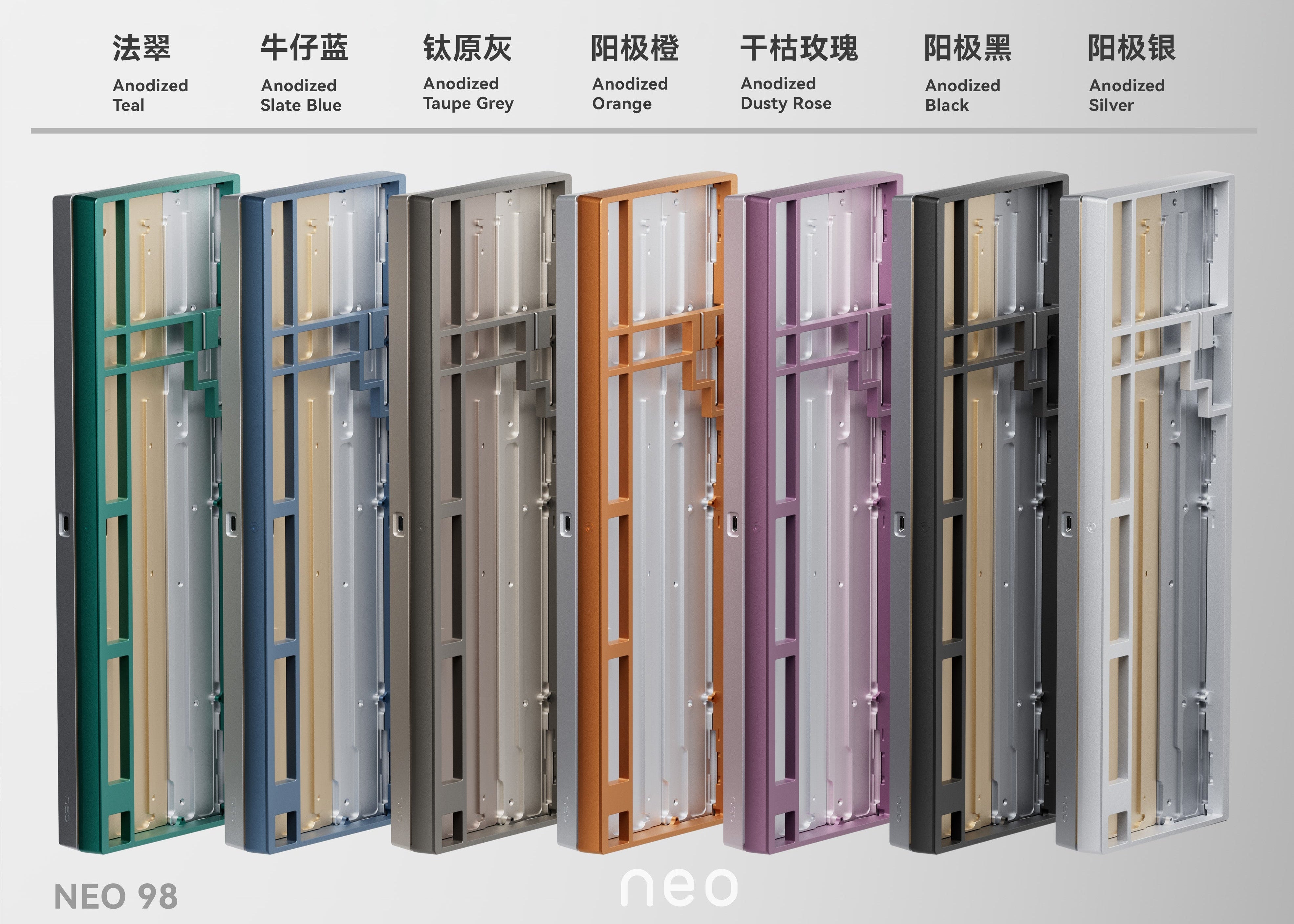

Stunning Colors
Top, bottom and battery cover colors are a fixed pairing
| Top Case Color (Aluminum) | Bottom Case Color (Aluminum) | Battery Cover Color (Aluminum) |
|---|---|---|
| Anodized Teal | Anodized Silver | Anodized Light Gold |
| Anodized Slate Blue | Anodized Silver | Anodized Light Gold |
| Anodized Taupe Grey | Anodized Warm Silver | Anodized Sand Gold |
| Anodized Orange | Anodized Silver | Anodized Silver |
| Anodized Dusty Rose | Anodized Plum | Anodized Silver |
| Anodized Black | Anodized Light Grey | Anodized Light Gold |
| Anodized Silver | Anodized Light Grey | Anodized Light Gold |
Essential Information
Specifications
Specification
- Dimensions: 398.4 x 133.8 mm
- Front Height: 17.6 mm
- Typing Angle: 7°
Weight:
- Tri-mode: Case only: 1798 g
Package weight (Alu Plate): 2864 g - Wired-only: Case only: 1976 g
Package weight (Alu Plate): 3049 g
PCBs:
- Tri-mode Hot-swappable PCB (ANSI)
- Tri-mode Hot-swappable PCB (ISO)
- Wired Hot-swappable PCB (ANSI)
Content List
For orders with tri-mode PCBs, two 2200 mAh batteries come pre-installed in the battery compartment.
For orders with wired PCBs, two stainless steel fillers come pre-installed in the battery compartment.
PCB Kit
- PCB of your choice
- 1x PE sheet
- 1x PCB foam
- Tri-mode PCB comes with a 2.4GHz dongle
Plate of your choice
Poron case foam
PCB daughterboard and magnetic connectors—installed
9x Silicone gaskets, 9x long Poron gaskets, 18x short Poron gaskets and Top-mount mounting screws
5x Positioning silicone(grey)
LED diffuser
6x Rubber feet(grey)
Backup screws
Free Gifts: (Disclaimer: If any of these gifts is missing or is damaged, they will not be re-shipped or replaced)
- Keyboard carrying case
- Keyboard pouch
- 1x Keycap & Switch puller
- 1x Screwdriver
- 1 set of PCB clip-in NeoStab
- USB-C cable
