Product Highlights
Neo80 Cu Custom Mechanical Keyboard
Product Highlights
Product Layout
Please note:
- Because of its properties, PEI plates may not be perfectly flat after processing. Slight unevenness is normal for this material.
- Since the top-mount screws are fixed through the plate, choosing a solder PCB with a plateless configuration makes top-mounting unavailable.
- Renders are for reference only. Please note that actual product colors may vary under different lighting conditions. Color differences between the render and the actual product will not be considered a quality issue.
- Dusk are random mixes of gradients, so the result on each unit may vary.
- Dusk features random gradient mixtures, making each unit unique.
- Specific color selections for Dusk are not available.
- Dissatisfaction with Dusk's iridescent colors is not a valid reason for return.
- Dusk colors may include single or multiple variations as shown in the render, with varying shades and intensities.
- Purchase indicates acceptance of the above terms.
Essential Information Before Purchasing:
- Please do not add any additional items to your cart with this keyboard. Doing so will prevent you from completing checkout.
- Limit to one unit per order. If you wish to purchase multiple units, please place separate orders. If you're placing multiple orders for delivery to different addresses, please use separate accounts for each order. Our logistics system automatically consolidates all orders under the same account and ships them to a single destination.
- All products on this page are final sales. No changes or cancellations will be made after an order is placed
Free Shipping with Your Keyboard
This is a pre-order product.
Estimated Fulfillment Time: 4 weeks
One-Year Functionality Warranty
Neo80 Cu
The Neo80 Cu is built around the beloved 80% layout, a proven favorite among professionals and enthusiasts who prioritize efficiency and functionality. This layout offers the perfect balance between compact design and practical usability, making it ideal whether you're upgrading your workspace or seeking a reliable daily driver.
Full Copper & Brass Bottom
Despite its large 80% layout, we've maintained the Cu series's signature all-copper bottom design—bringing the keyboard's total weight to approximately 4.5 kg when fully assembled.

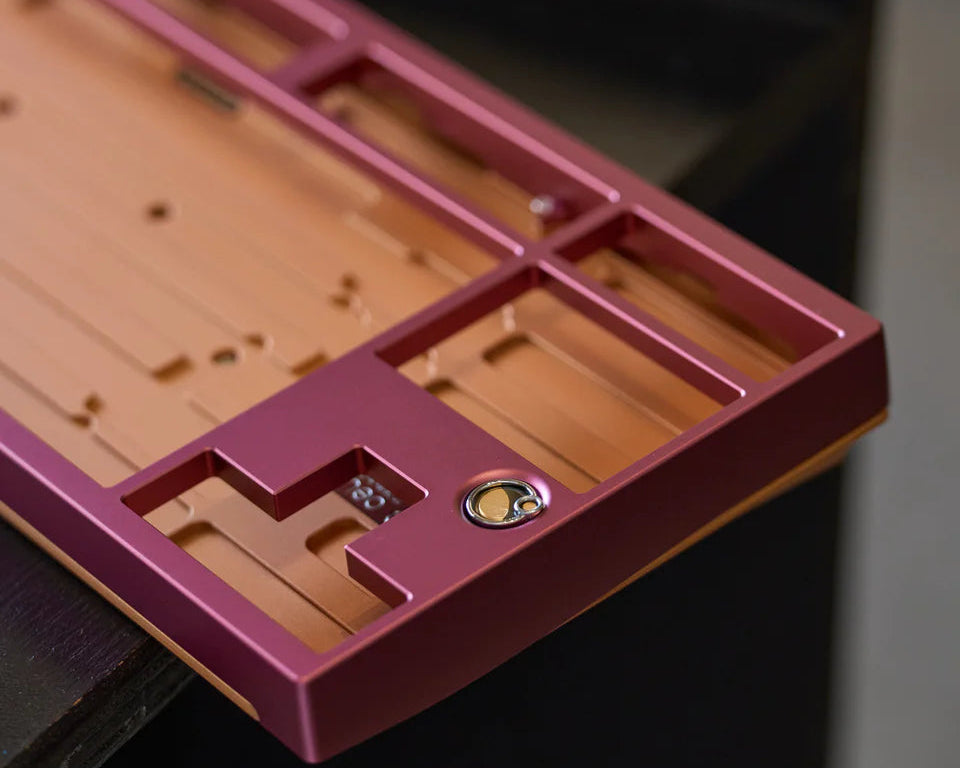

Acoustic Chamber Design with Integrated Forcebreak
Like most Neo keyboards, the bottom case features a partitioned acoustic chamber to minimize hollowness. Forcebreak pads at all contact points reduce vibration and metallic noise, and combined with the copper base, deliver the deep, clean "copper bottom" typing sound that Neo fans love, without any foam.
The Star Ring Accent Light
Inspired by massive celestial bodies, whose gravity warps surrounding space, the Neo80 Cu's top case features a multi-layered "star ring" light that captures the brilliance of a planet against the dark night sky.
The central "planet" features a triple-etched aluminum finish, surrounded by a mirrored stainless-steel ring, creating a striking "floating planet" effect.

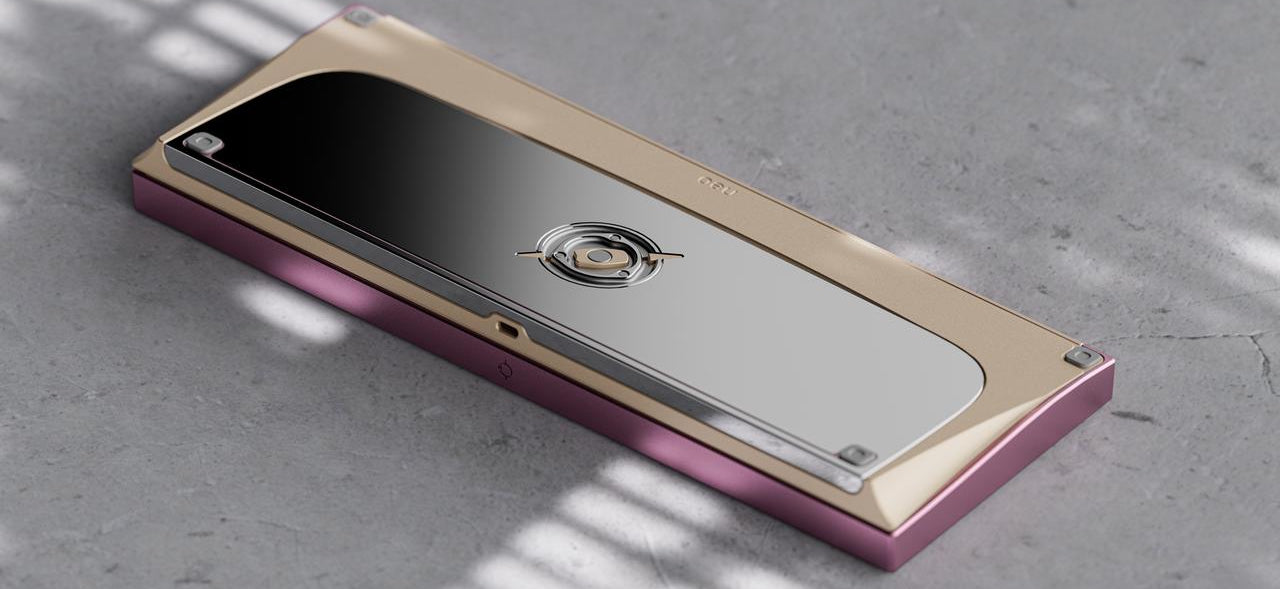

Weight Design
On the back, the intersection of the weight and the bottom case features a carefully sculpted slope that softens transitions. The compass-inspired Cu series logo sits in the center, showcasing the iconic symbolism of the Neo brand.
Mounting Structure
Poron Gasket Mount + Silicone Gasket Mount + Top Mount
We've integrated the Poron Gasket structure into the Neo80 Cu. Unlike traditional Poron Gaskets that require gluing to the case, we've designed special grooves in the bottom case to securely hold the Poron Gaskets in place. This innovation allows for hassle-free replacement and ensures exceptional durability over time. Of course, we've also retained the silicone gasket mount structure as an alternative option for those who prefer it.
*Since the top-mount screws are fixed through the plate, choosing a solder PCB with a plateless configuration makes top-mounting unavailable
Plate Design: Research & Innovation
Glossy-chamfer ALU Plate Predecessor
Predecessor
After listening to our community, we designed a flex-cut aluminum plate for the Neo80 Cu. Early tests with single-key slots gave us uniform sound and bounce, but also a loose feel, pushing us to rethink the approach.
Glossy-chamfer ALU Plate Iteration
Iteration
Deep side grooves on the spacebar reduce harshness but could affect durability. To solve this, we added two spring-like supports that boost strength without stiffness. Paired with the flex cut, the design balances strength and flexibility.
Glossy-chamfer ALU Plate Final Version
Final Version
We added chamfers to every switch hole for easier installation, with glossy edges around the plate. In keeping with the celestial theme, we also incorporated a planet decoration above the arrow keys, creating a refined aesthetic from the inside out.
New PEI Plate
New PEI Plate
PEI is an emerging keyboard plate material that offers superior tenacity and stability compared to PC. It delivers a crisp sound and refreshing typing feel with every keystroke. Rather than using sandblasting, we apply a clear coating to create a smoother, more radiant finish that truly stands out.
Plate Family Portrait
Plate Family Portrait
In addition to the new PEI plate, Flex-cut ALU plate with glossy chamfer, we also offer regular Alu plate, Carbon Fiber and PP plates for your selection.
New Color in Real Shots
Not only are we bringing back the fan-favorite Teal from the Neo series, but we’re also introducing a stunning lineup of fresh colors — Slate Blue, Taupe Grey, Dusty Rose, Jade, and Ruby Rose, giving you even more ways to make your keyboard truly yours.
Designed with Vision, Defined by Excellence
Mastery in Every Detail
Design is woven into every inch of our work, from the Star Ring Accent Light at the front to the compass-inspired on the weight. Within every small space lies an abundance of thoughtful artistry. We refine every detail with uncompromising precision.
Uncompromising in Materials
Every material choice is made with intention. From the harmony of an aluminum top case and copper bottom case to the introduction of multiple plate options, each element is thoughtfully considered. All to create a keyboard that feels truly your own.
Engineered with Purpose
Our structural design embodies our deepest commitment. The case features an Acoustic Chamber for refined sound, paired with an integrated force break to minimize unwanted resonance. With three mounting options, the keyboard can be tailored until it feels uniquely yours.
Essential Information
Specifications
- Typing angle：8 degree
- Front height：18 mm
- Size：80% TKL, 355.5mm * 134 mm
- Layout: WK/WKL
- Weight： Around 4.5 kg after assembly
Tri-mode ANSI Hotswap PCB (Non-flex Cut)
- 1.6mm thick
- Support USB-C, Bluetooth, and 2.4GHz connection
- Support only ANSI layout
- NKRO
- Polling rate: 1000Hz in wired and 2.4GHz mode; 125Hz in BT mode
- NO Per-key RGB
Tri-mode ISO Hotswap PCB (Non-flex Cut)
- 1.6mm thick
- Support USB-C, Bluetooth, and 2.4GHz connection
- Support only ISO layout
- NKRO
- Polling rate: 1000Hz in wired and 2.4GHz mode; 125Hz in BT mode
- NO Per-key RGB
Wired Hotswap PCB (Non-flex Cut)
- 1.6mm thick
- USB-C connection only
- Support only ANSI layout
- NKRO
- Polling rate: 1000Hz
- NO Per-key RGB
Solder PCB (Non-flex Cut)
- 1.6mm thick
- Mill-max compatible
- USB-C connection only
- Support both ANSI and ISO layout
- NKRO
- Polling rate: 1000Hz
- NO Per-key RGB
Content List
Keyboard Case
- For orders with tri-mode PCBs, two 2200 mAh batteries come pre-installed in the battery compartment
- For orders with wired PCBs, two stainless steel fillers come pre-installed in the battery compartment
- For orders with solder PCBs, two foam fillers come pre-installed in the battery compartment. （If you purchase the stainless steel battery compartment fillers in the extra part page, foam fillers will no longer be included.）
PCB kit
- PCB of your choice
- 1x PE sheet
- 1x PCB Foam
- Tri-mode PCB comes with a 2.4Ghz dongle
Plate of your choice
Poron case foam
PCB Daughterboard and magnetic connectors - installed
9x Silicone Gaskets, 9x long Poron gaskets, 18x short Poron gaskets and Top-mount mounting screws
4x Positioning silicone(grey)
Rubber feet in 2 colors
Backup screws
Free Gifts:（Disclaimer: If any of these gifts is missing or is damaged, they will not be re-shipped or replaced.）
- Keyboard carrying case
- Keyboard pouch
- 1x Keycap & Switch puller
- 1x Screwdriver
- 1 set of PCB clip-in NeoStab
- USB-C cable
