Neo60 Cu Custom Mechanical Keyboard
Please note:
- Spray-coated Nebula contains micro-glitter.
- Renders are for reference only. Please note that actual paent lighting conditions. Color differences between the render and the actual product will not be considered a quality issue.
- Dusk features random gradient mixtures, making each unit unique.
- Specific color selections for Dusk are not available.
- Dissatisfaction with Dusk's iridescent colors is not a valid reason for return.
- Dusk colors may include single or multiple variations as shown in the render, with varying shades and intensities.
- Purchase indicates acceptance of the above terms.
Essential Information Before Purchasing:
- Advanced feature in ANY key is not supported. LS(, RS), LC(, and RC) can work fine in wired mode, but may not work correctly in wireless mode when held briefly and pressed together with another key.
- Do not clean the brass/copper bottom case with alcohol or rub it hard. Otherwise, you may damage the anti-oxidation coating.
- The oxidation of brass/copper weights is inevitable due to the characteristics of the material.
- The compass-inspired logo in the center of the weight features a pointer that matches the bottom case material, while its four dots match the top case color.
- To modify your Neo60 Cu specifications, please don't adjust quantities in the shopping cart. Instead, return to the product page and add the new option to your shopping cart again.
- Please do not add anything other than Neo60 Cu extra parts to the cart along with this keyboard. Otherwise, you will be prevented from checking out.
- Incomplete orders (those lacking a plate, PCB, or other essential keyboard components) will be canceled. Buyers will be responsible for any resulting fees and transaction costs.
- Limit to one unit per order. If you wish to purchase multiple units, please place separate orders. If you're placing multiple orders for delivery to different addresses, please use separate accounts for each order. Our logistics system automatically consolidates all orders under the same account and ships them to a single destination. This feature helps combine extra parts orders and allows you to take advantage of free shipping.
- All products on this page are final sales. No changes or cancellations will be made after an order is placed.
Fulfillment Progress
Pairs well with
This is a pre-order product.
Estimated Fulfillment Time: 4 weeks
One-Year Functionality Warranty
Neo60 Cu Custom Mechanical Keyboard

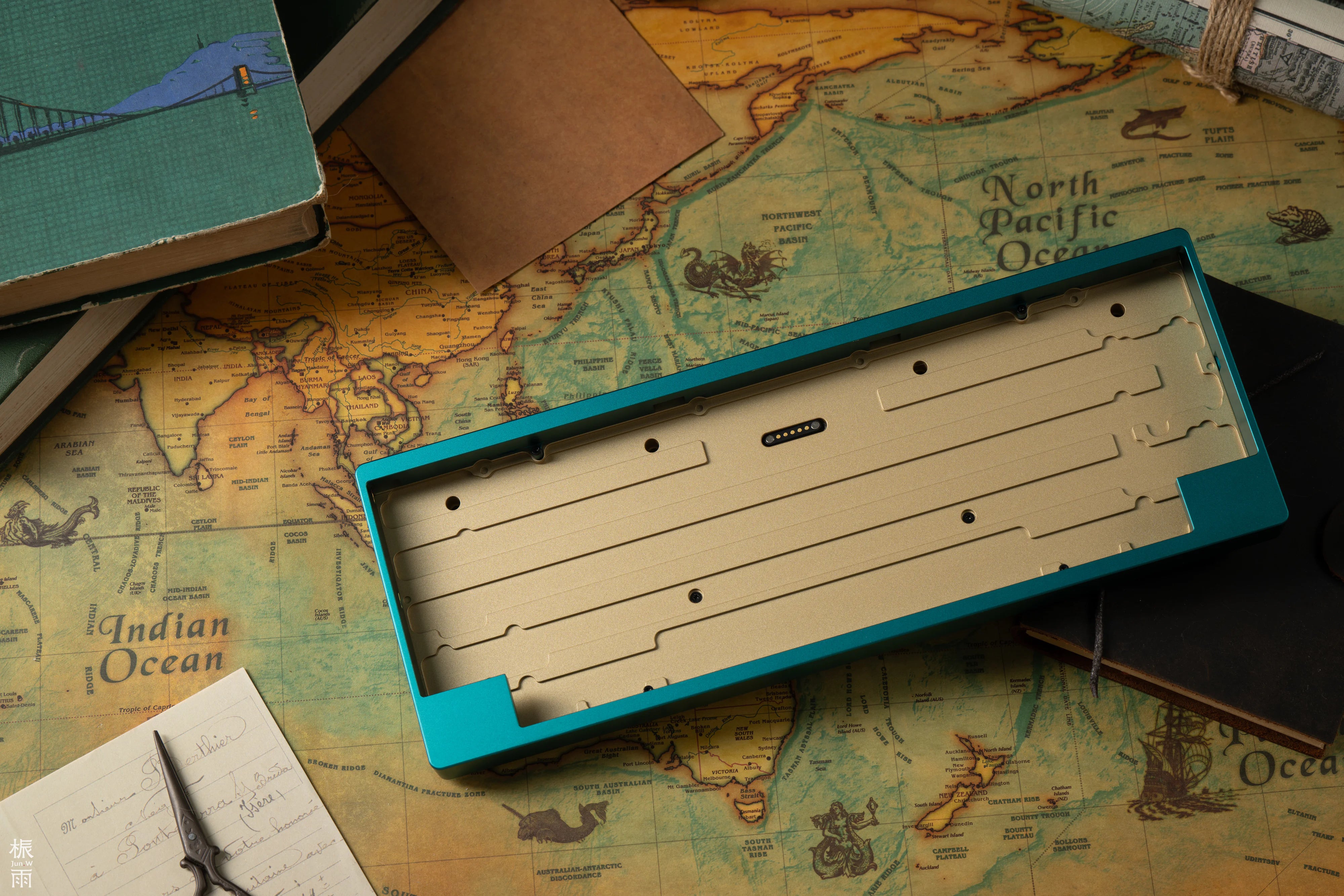

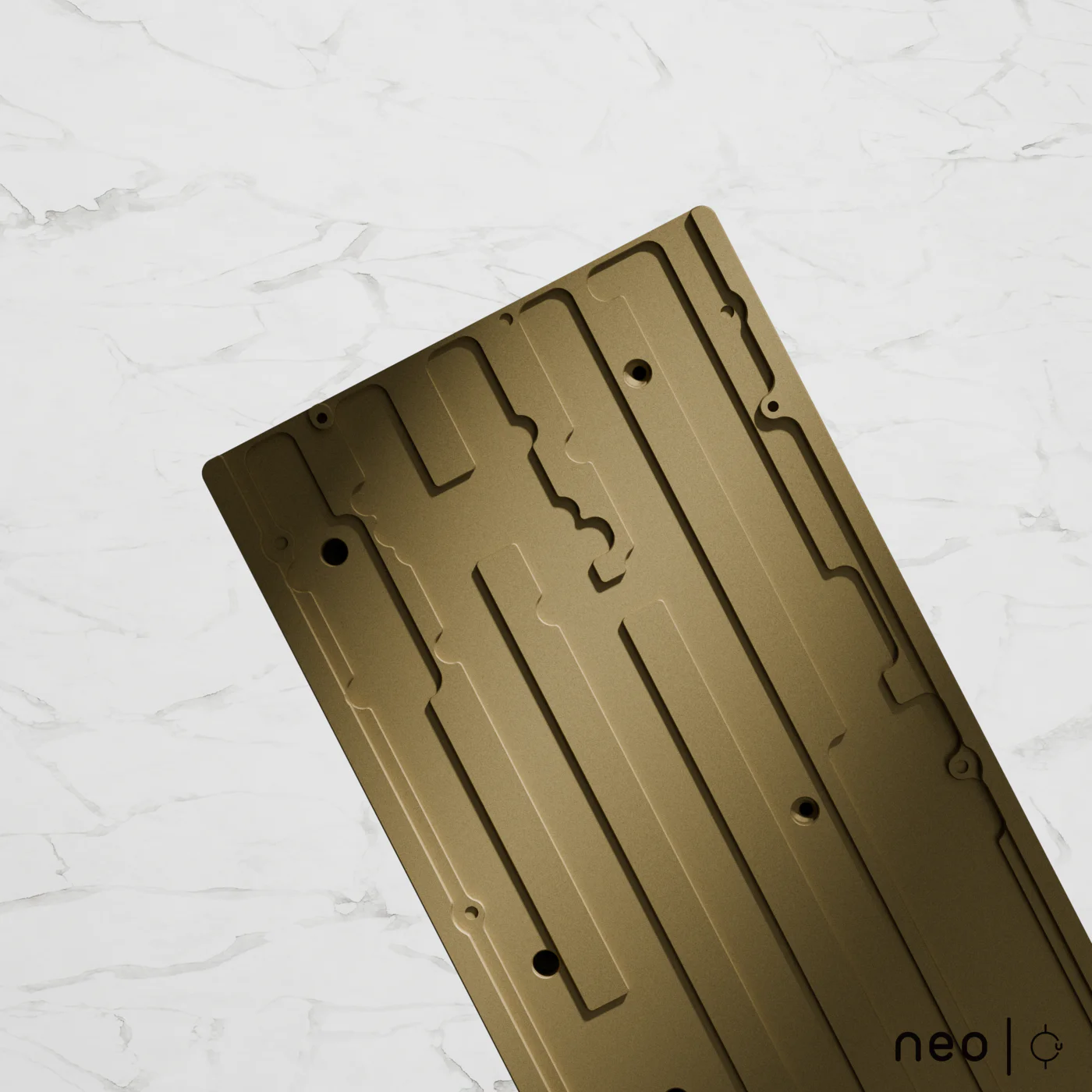

Copper Bottom
The Cu's design focuses on the copper bottom to minimize hollowness.

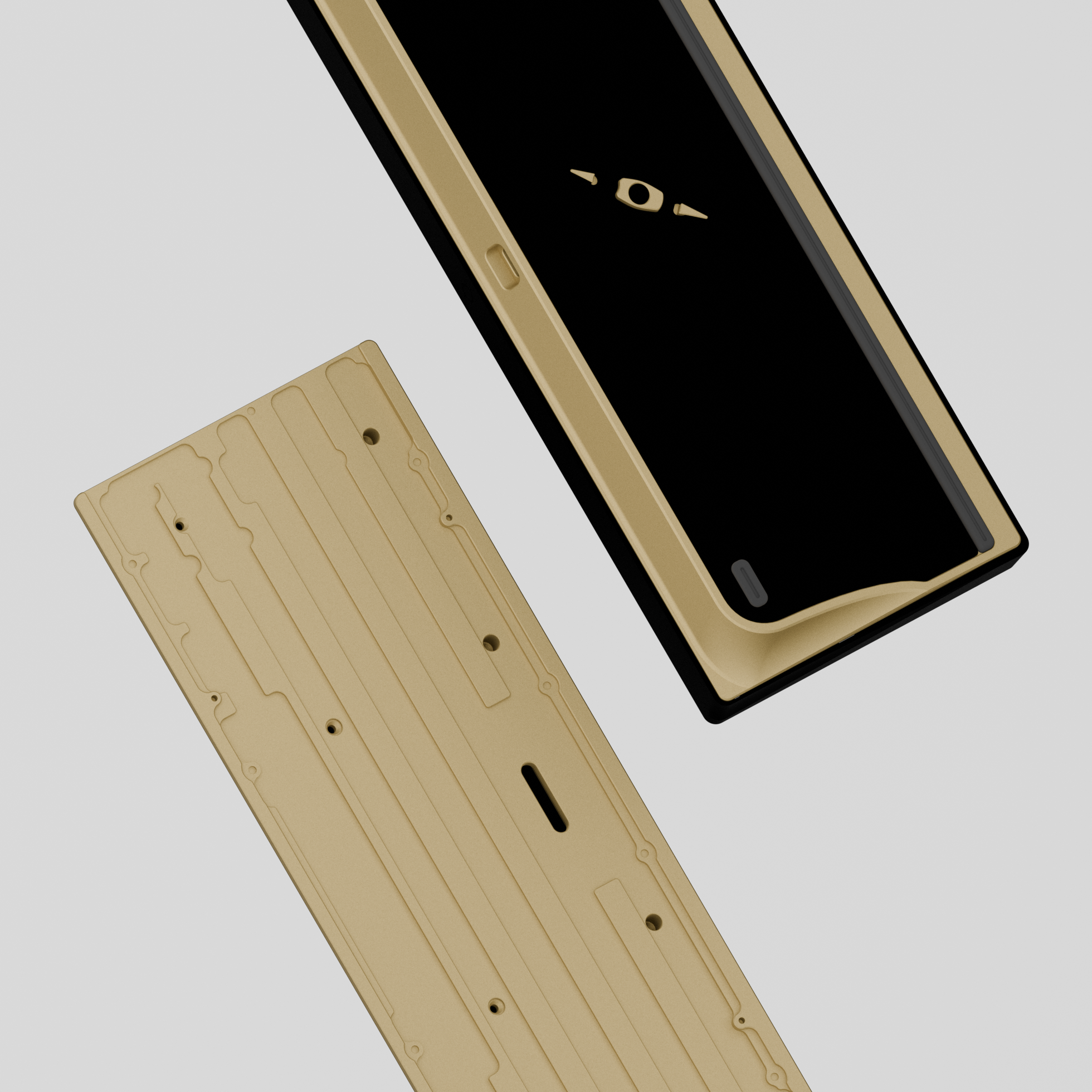

For the Neo60 Cu, we've crafted the entire bottom case from copper. Compared to aluminum alloy, brass and copper produce a more solid and clean sound. We've designed a sophisticated acoustic chamber for the Neo60 Cu. This design, combined with the material properties of the bottom case, significantly reduces hollow sound without requiring foam fillers.

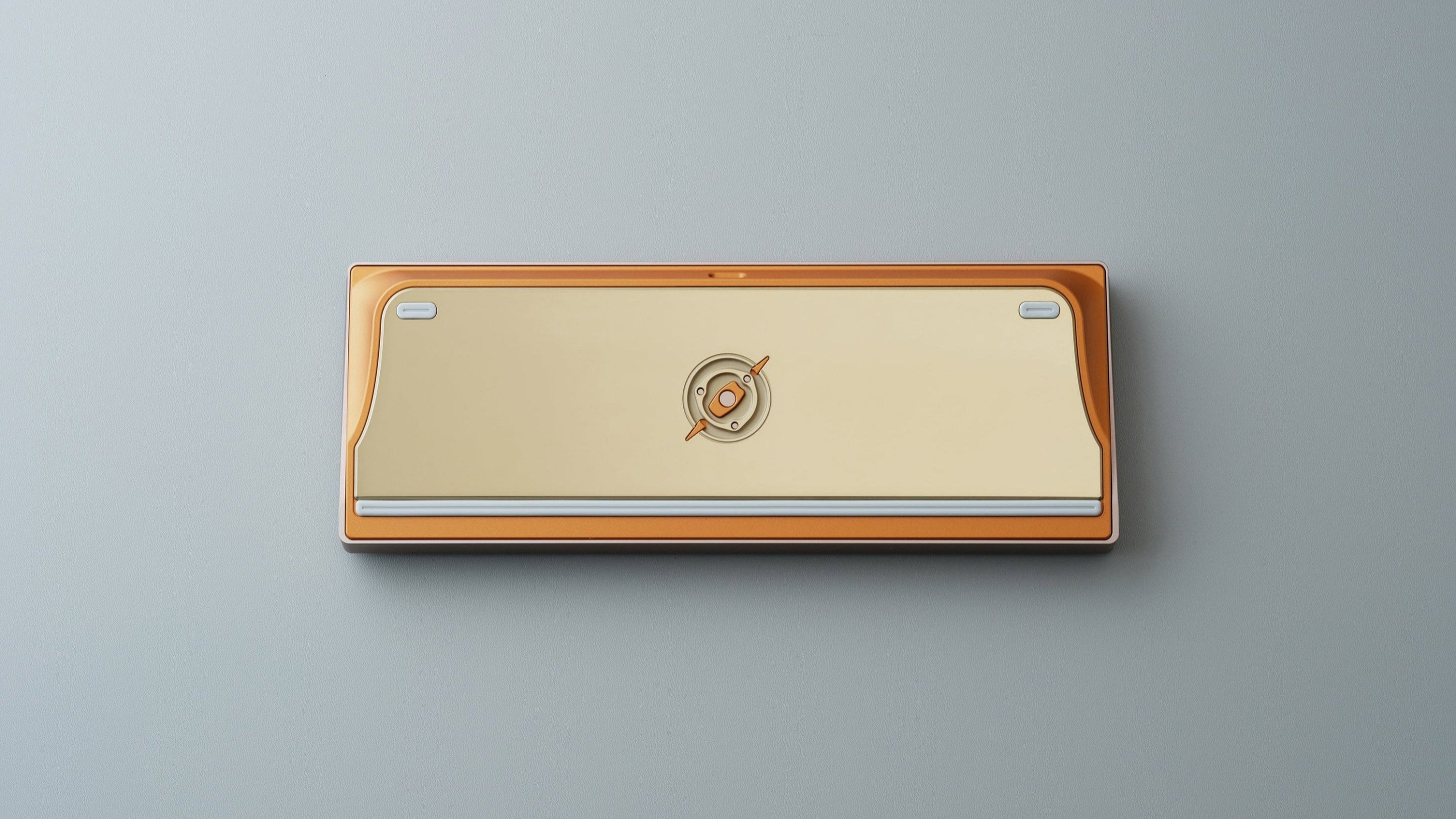

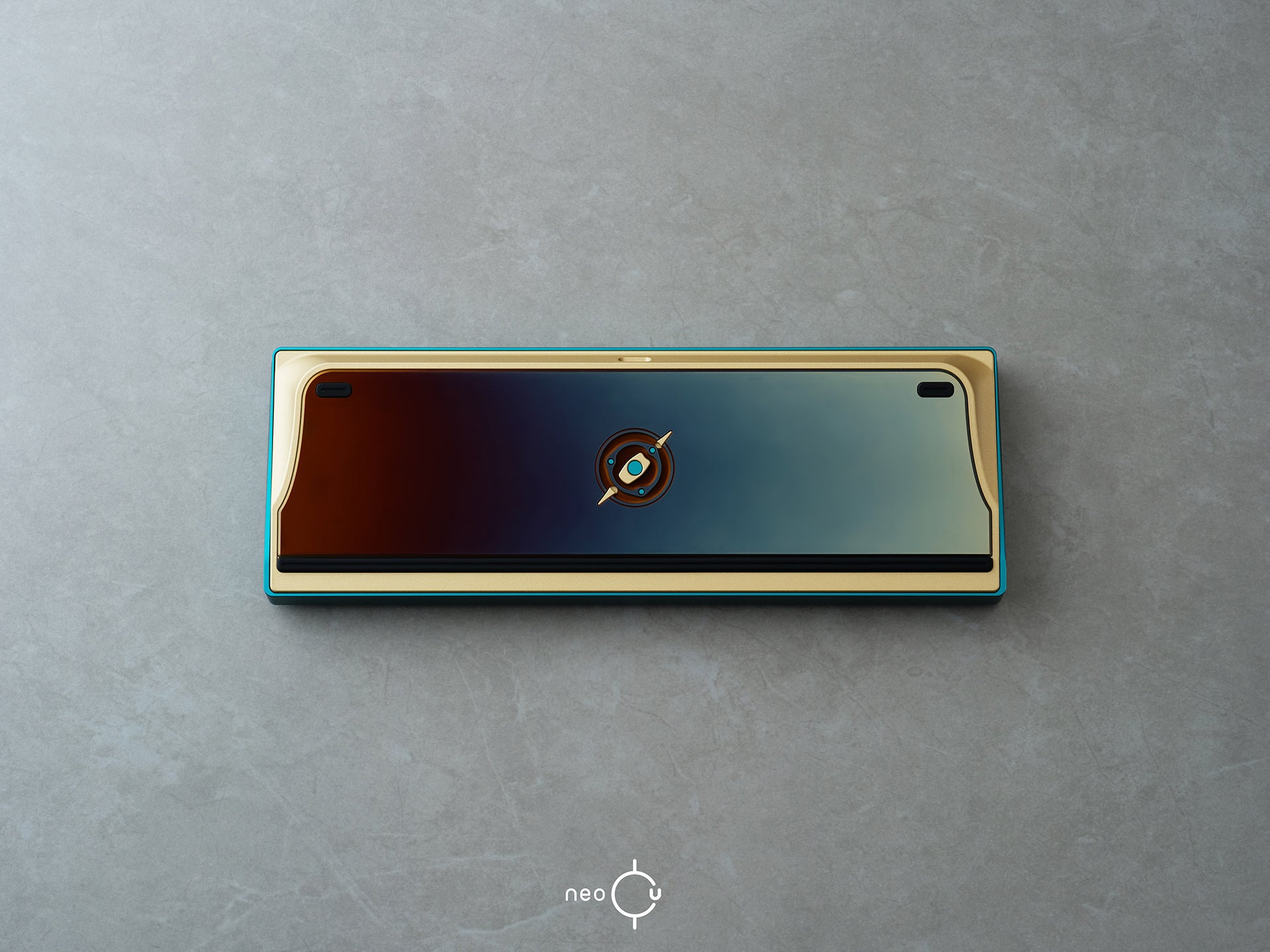

Copper vs. Brass Bottom

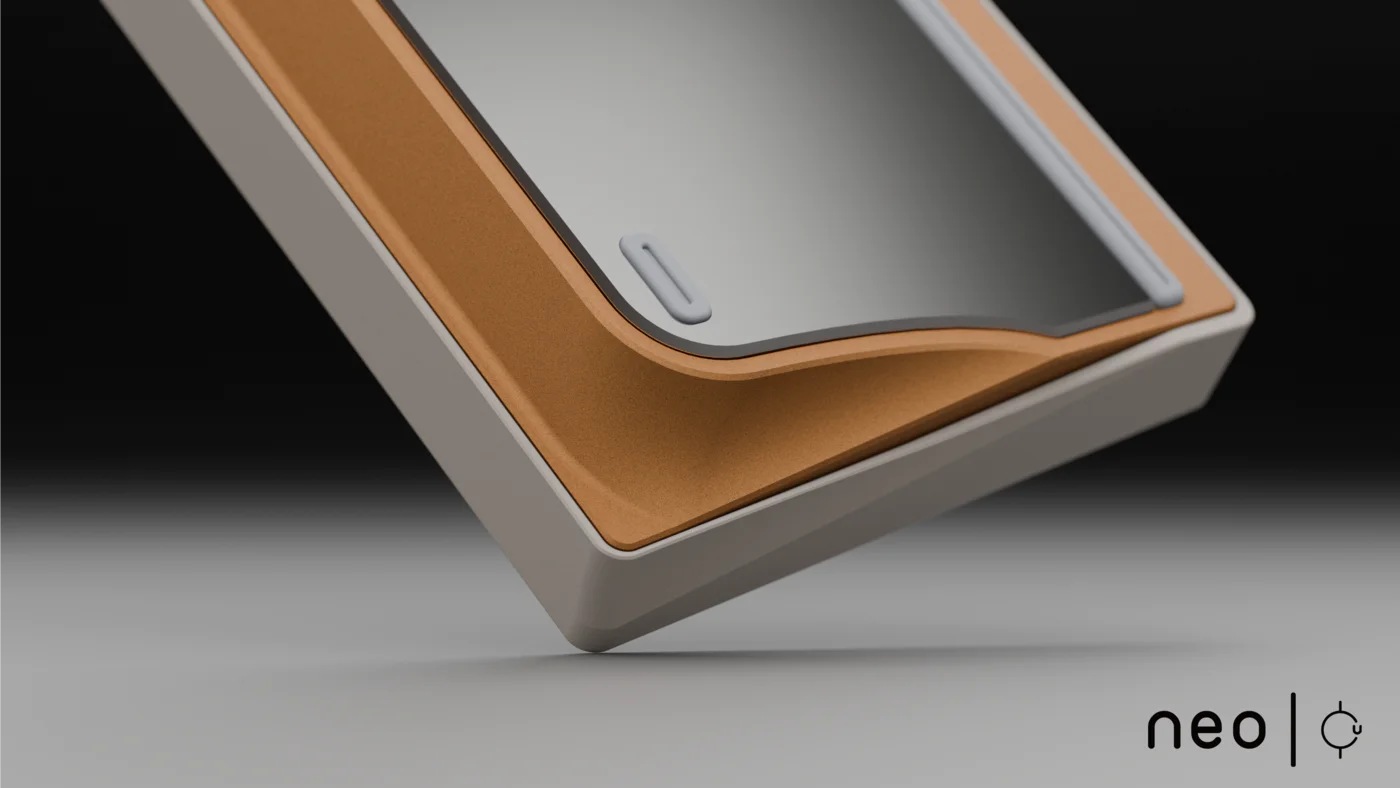

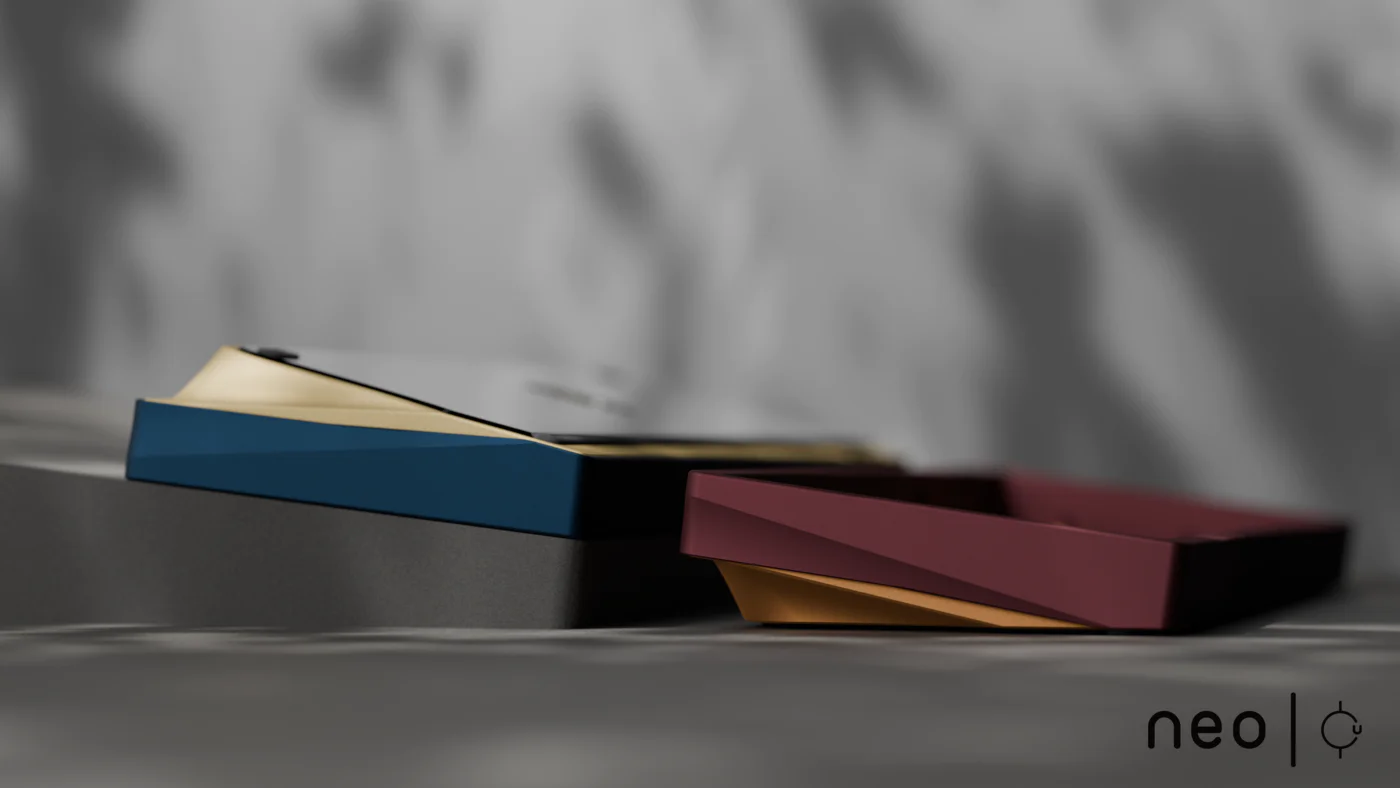

Waistline Design
We've introduced a more layered waistline design that harmonizes beautifully with the copper bottom to enhance the design language of the Cu series. The curved bottom case softens the visual weight of the copper, creating a sleeker and more slender front profile. The combination of the vivid top case with the copper bottom creates a striking, dynamic aesthetic.
Weight Design

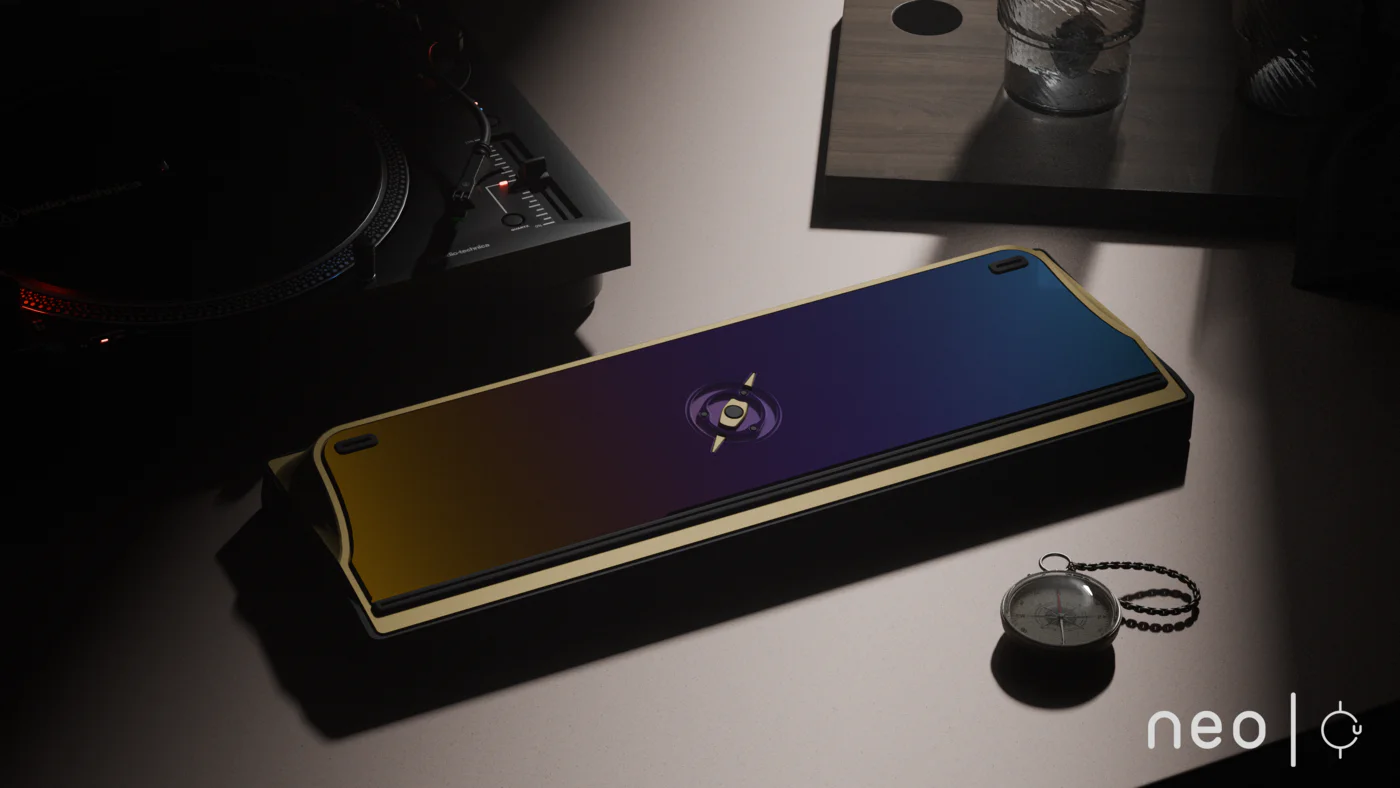

The Cu's design focuses on the copper bottom. Instead of an aluminum battery compartment, we've added a large, mirror-finished PVD stainless steel weight. This weight is more than decorative—its extensive surface area and higher density better suppress vibrations, resulting in more consistent typing sounds.
At the center, we've incorporated a compass-inspired logo that echoes the Core series Neo65 logo while highlighting Neo brand's iconic symbolism.

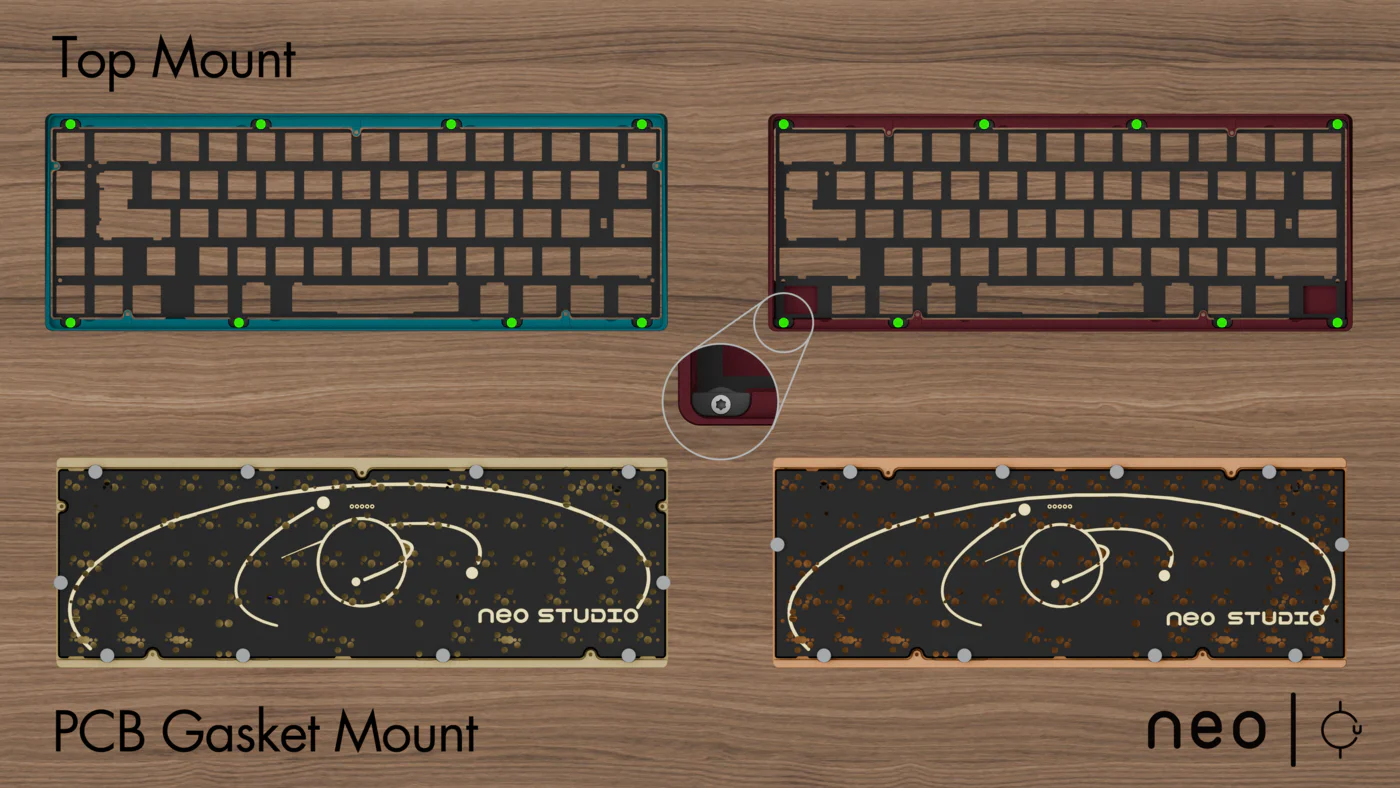

Dual-Mounting System
The Neo65 & 60 Cu supports both PCB gasket mount (carried over from the Neo65) and isolated top mount. In previous designs, our ball-catch structure prevented top mount implementation since the plate/PCB screw holes would conflict with ball-catch components. The Neo65 & 60 Cu's new structure eliminates this limitation, making top mount possible this time.
Our isolated top mount design incorporates thick silicone gaskets around the mounting screws. This approach maintains the tactile feedback of a traditional top mount while reducing vibration and eliminating direct metal contact.
The Ultimate Sound Experience
Copper Bottom + Stainless Steel Weight
Dense materials ensure a pure and clean typing sound
Chamber Isolation in Bottom Case
Significantly reduces hollow sound without requiring foam fillers
Internal Locking Structure
Eliminates metal contact vibrations
Specifications
Specifications
- Typing angle：8°
- Front height：18.6mm
Size：
- Neo60 Cu: 108.8mm * 292.3mm
- Neo65 Cu: 108.8mm * 311.35mm
Weight (after build)：
- Neo60 Cu: 2.3kg (with tri-mode PCB), 2.47kg (with wired PCB)
- Neo65 Cu: 2.5kg (with tri-mode PCB), 2.67kg (with wired PCB)

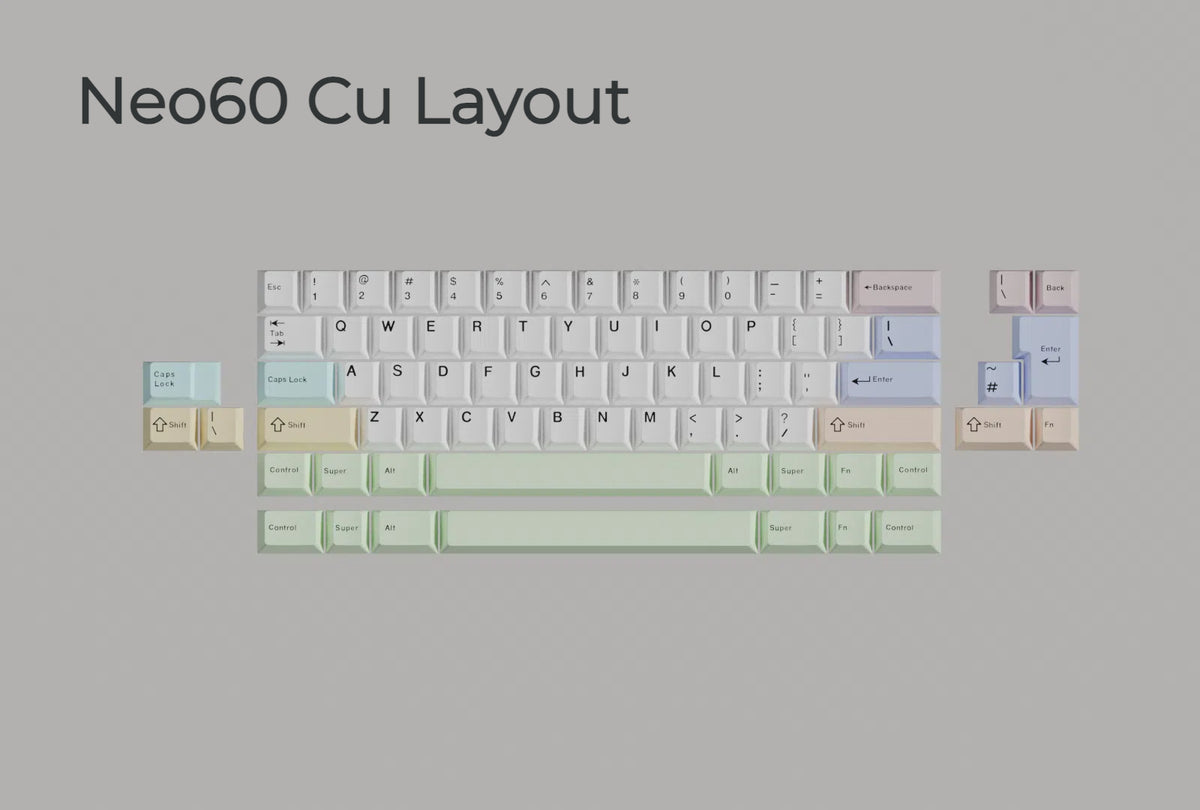

Layout options:
- Neo60 Cu offers 3 layout options: WK, WKL, and HHKB
- Neo65 Cu features a 65% layout with a single blocker
PCB Options - All VIA-compatible
Tri-mode Hotswap PCB
- 1.6mm thick, non-flex cut
- Support USB-C, Bluetooth, and 2.4GHz connection
- Support both ANSI and ISO layout
- NKRO
- NO Per-key RGB
Wired Hotswap PCB
- 1.6mm thick, non-flex cut
- USB-C connection only
- Support both ANSI and ISO layout
- NKRO
- NO Per-key RGB
Solder PCB
- 1.6mm thick, non-flex cut
- USB-C connection only
- Support both ANSI and ISO layout
- NKRO
- NO Per-key RGB
Content List
Keyboard Case
For orders with tri-mode PCBs, two 2200 mAh batteries come pre-installed in the battery compartment
For orders with wired PCBs, two stainless steel fillers come pre-installed in the battery compartment
For orders with solder PCBs, two foam fillers come pre-installed in the battery compartment.
If you purchase the stainless steel battery compartment fillers in the extra part page, foam fillers will no longer be included.
PCB kit
- PCB of your choice
- 1x PE sheet
- 1x PCB Foam
- Tri-mode PCB comes with a 2.4Ghz dongle
Plate of your choice
Poron case foam
PCB Daughterboard and magnetic connectors - installed
12x Gaskets, 10x top-mount mounting gaskets (black) and screws
Rubber feet in 2 colors
Backup screws
Stand-offs included with the hotswap PCB
Free Gifts:(Disclaimer: If any of these gifts is missing or is damaged, they will not be re-shipped or replaced.)
- Keyboard carrying case
- 1x Keycap & Switch puller
- 1x Screwdriver
- 1 set of PCB clip-in NeoStab
- USB-C cable
