QK80 Mk2 Custom Mechanical Keyboard
- Layout:
- WK

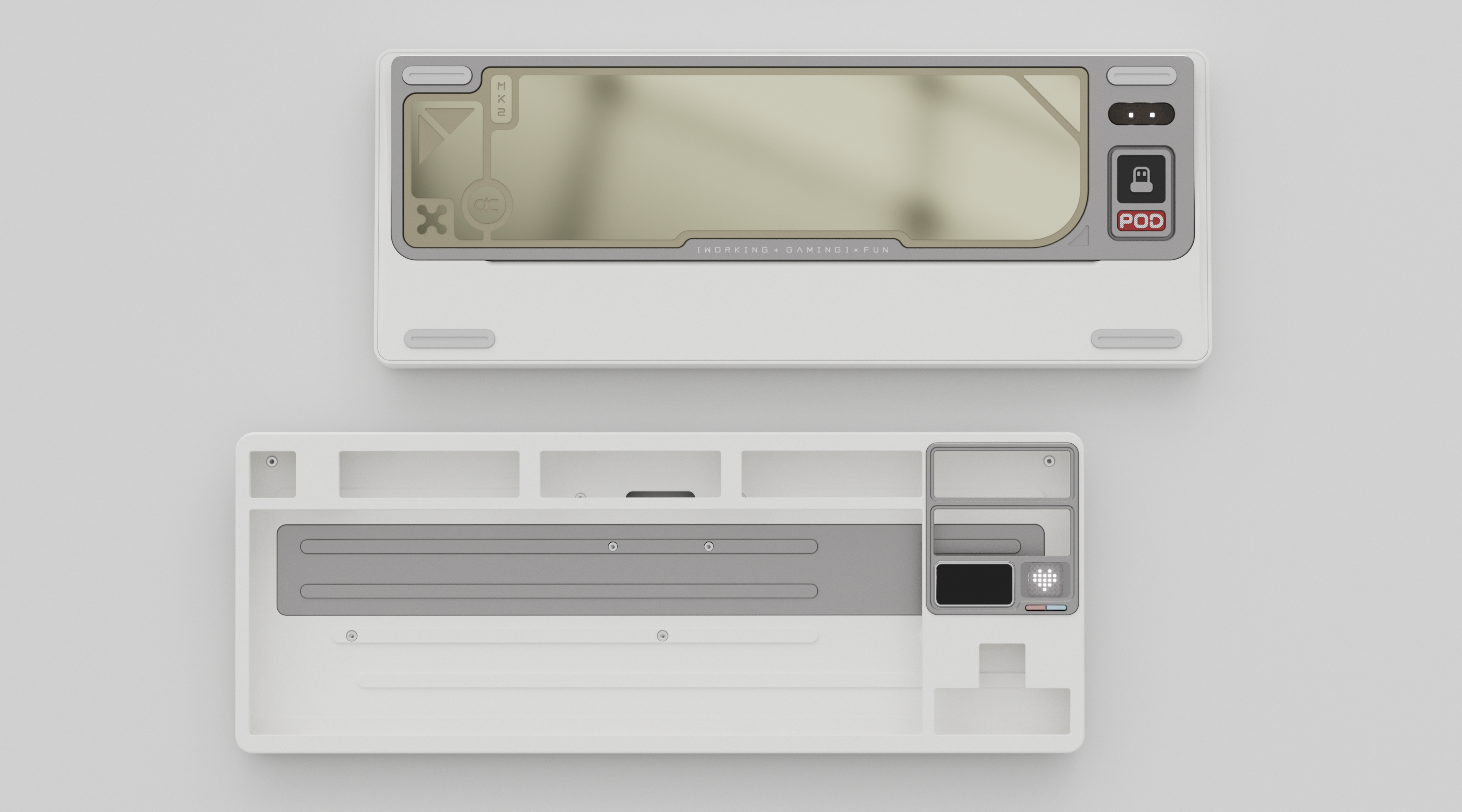

- Case:
- Spray-coated White
Please note:
- All products on this page are final sales. No changes or cancellations will be made after an order is placed.
- Limit to one unit per order. If you wish to purchase multiple units, please place separate orders.
- Renders are for reference only. Please note that actual product colors may vary under different lighting conditions. Color differences between the render and the actual product will not be considered a quality issue.
Essential Information Before Purchasing:
- The spray-coated White, Pink, Butter Yellow, and Red cases contain glitter.
- Per-key RGB lighting significantly increases power consumption, substantially reducing the keyboard's battery life in wireless modes. If you're not a big fan of per-key RGB, we strongly recommend choosing the non-RGB PCB for better battery performance.
- To improve the consistency of typing feedback, we've increased the leaf springs' stiffness on the QK80 Mk2. Consequently, its typing feel is not as soft as our other keyboard utilizing the same structure, such as the Vento or Jelly Evolv. We recommend checking review videos before purchasing to set realistic expectations for its typing performance.
- Please turn on the battery toggle (located underneath the Caps Lock keycap) first if you want to use the screen and dot-matrix LED. They will not work with the battery toggle turned off, even if you have plugged in a cable.
- All units purchased from this sale page come with two 4000 mAh batteries.
- To modify your QK80 Mk2 specifications, please don't adjust quantities in the shopping cart. Instead, return to the product page and add the new option to your shopping cart again.
- All PCBs utilize QK's custom VIA web configurator for keymapping and screen customization, as the original VIA software doesn't support advanced screen functions
- Please do not add anything other than QK80 Mk2 extra parts to the cart along with this keyboard. Otherwise, you will be prevented from checking out.
- Incomplete orders (those lacking a plate, PCB, or other essential keyboard components) will be canceled. Buyers will be responsible for any resulting fees and transaction costs.
- If you're placing multiple orders for delivery to different addresses, please use separate accounts for each order. Our logistics system automatically consolidates all orders under the same account and ships them to a single destination. This feature helps combine extra parts orders and allows you to take advantage of free shipping.
This is a pre-order product.
Estimated Fulfillment Time: 4 weeks
One-Year Functionality Warranty
QK80 Mk2 Custom Mechanical Keyboard
Customizable Display
QK80 Mk2 features three built-in themes, allowing users to match their display with different keycaps. Users can also personalize the keyboard by customizing animations on both the screen and dot-matrix display, adding a unique touch to their device.
In addition to the themes, we've included a mini-game—"Flappy Bird"—in the display module. This allows you to take a quick break during your busy schedule. Other basic functions like setting the date and time, toggling RGB lighting, and adjusting sleep settings are also accessible on the screen.

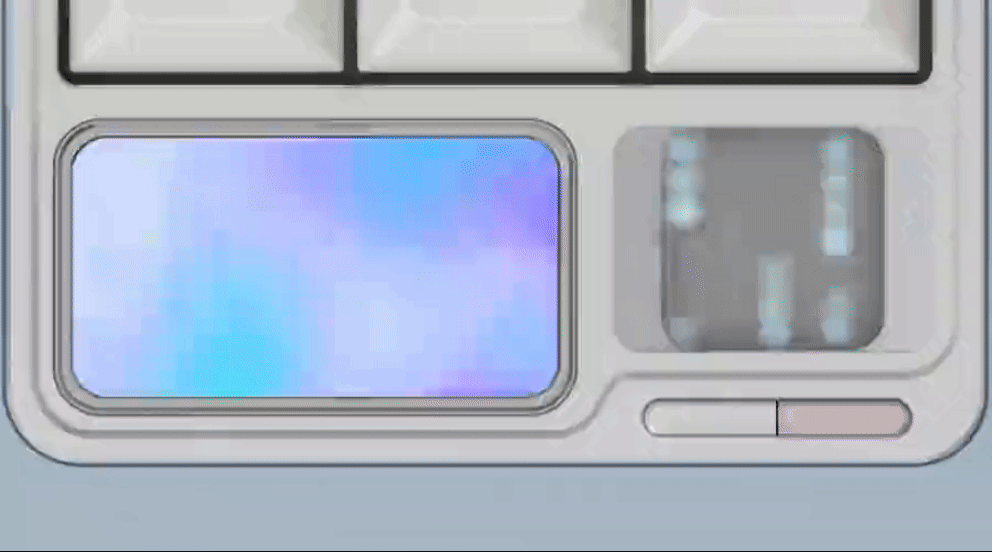

Theme 1: Dynamic

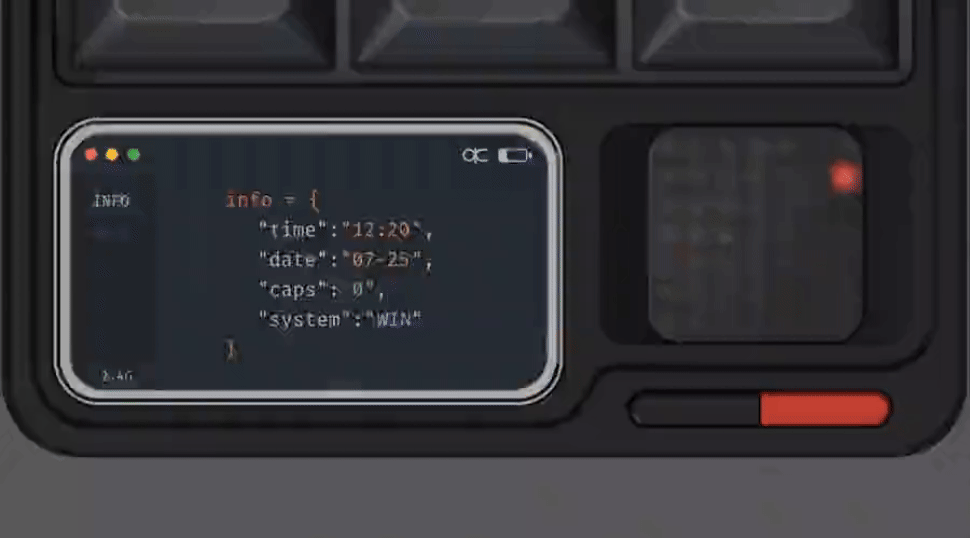

Theme 2: Code

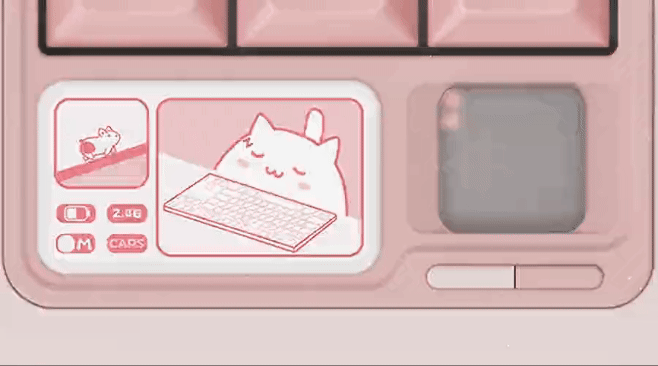

Theme 3: Meow

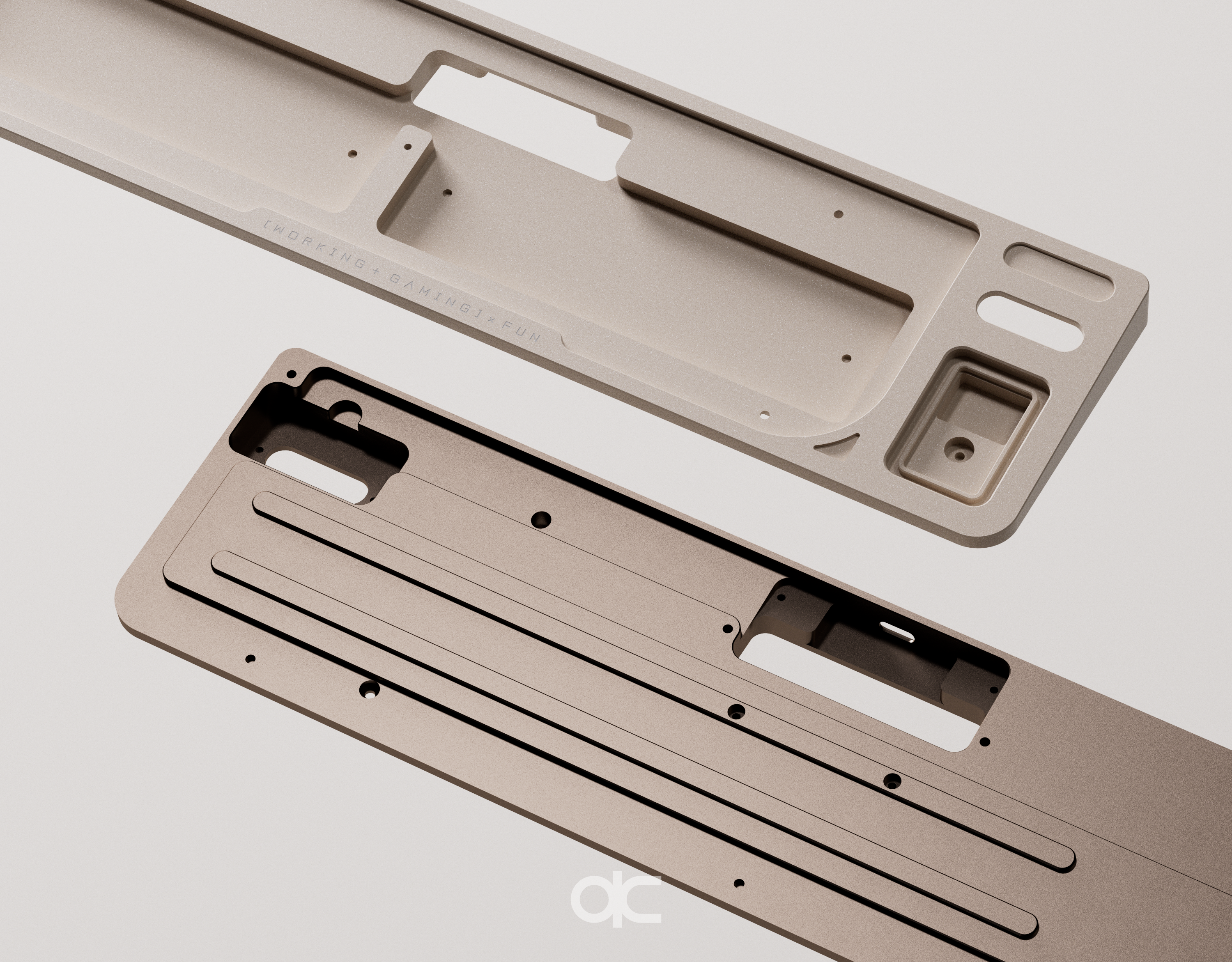

Back Design
We have further refined the overall structure of the QK80 Mk2. By separating the battery compartment from the bottom case, we've preserved the integrity of the sound chamber, thereby enhancing the keyboard's acoustic performance.

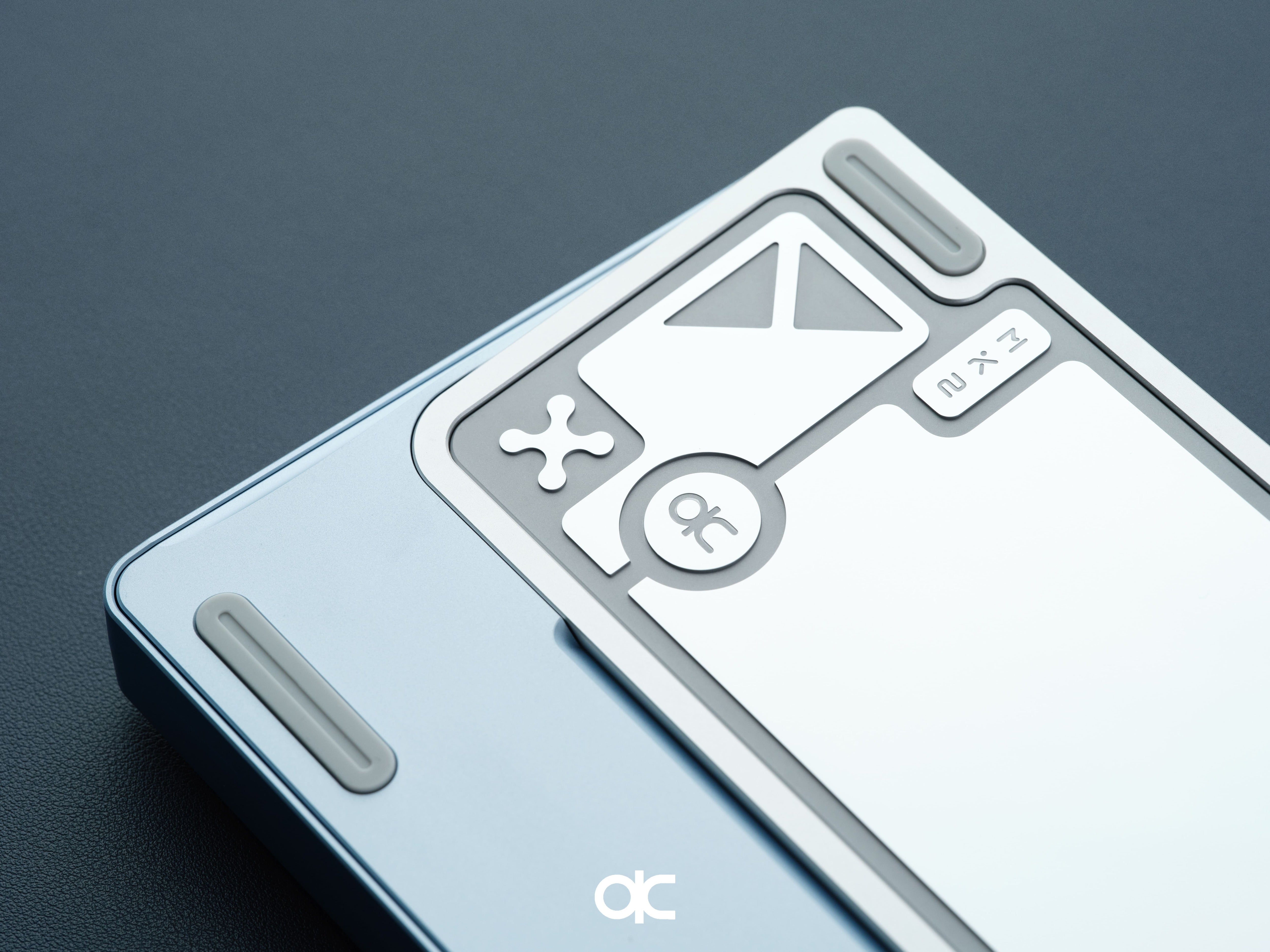

The weight design for the QK80 Mk2 showcases our continued exploration on QK's second-generation design language. Building on our unique weight shape, we've added more personalized elements for the Mk2. The contrast between different surface color and texture create a more sophisticated back profile.

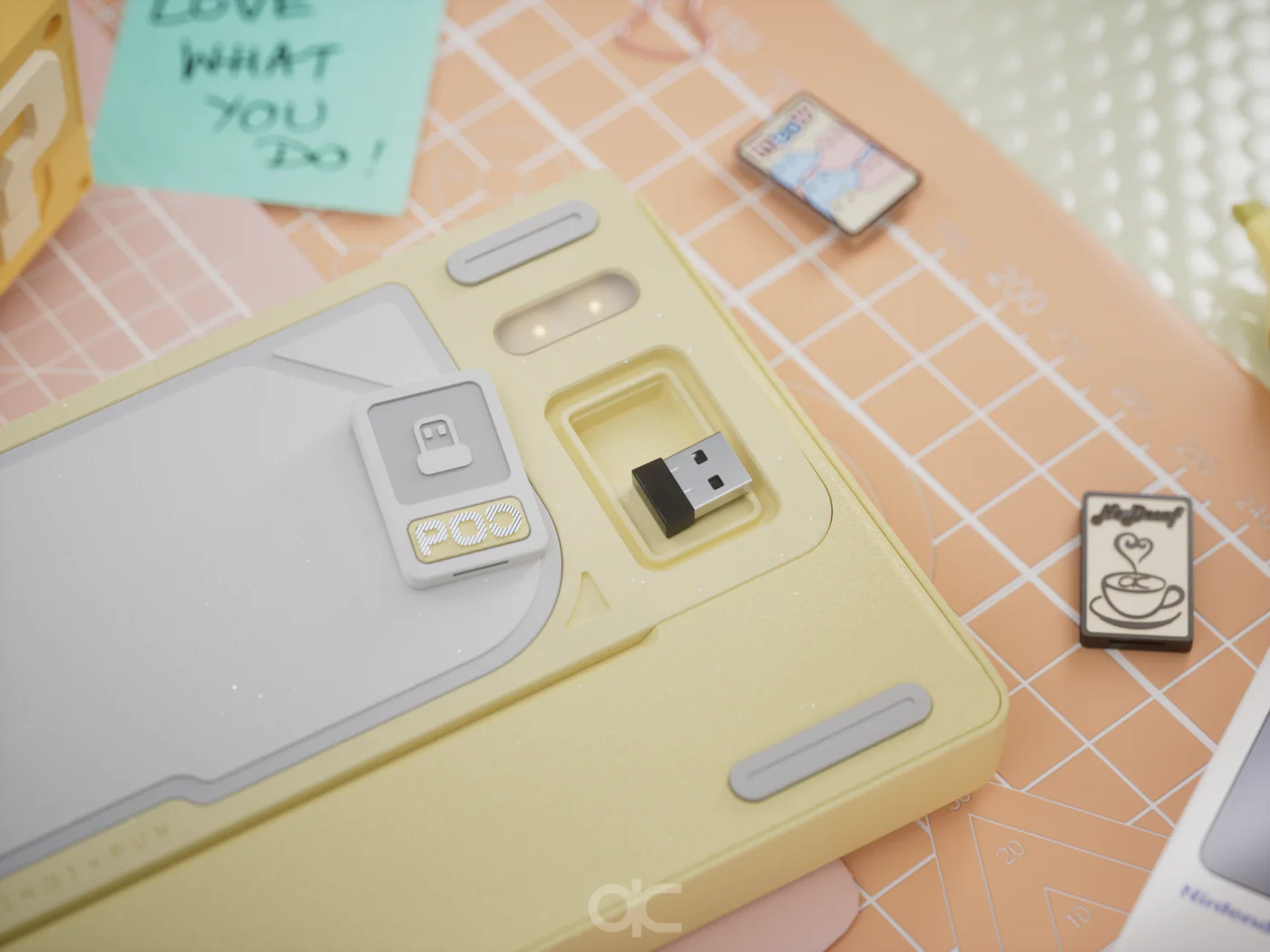

Dongle Pod With Magnetic Badge Cover
The badge on the back doubles as a cover for the USB dongle pod and a decorative element. It's magnetically attached to the bottom case, allowing for easy removal.

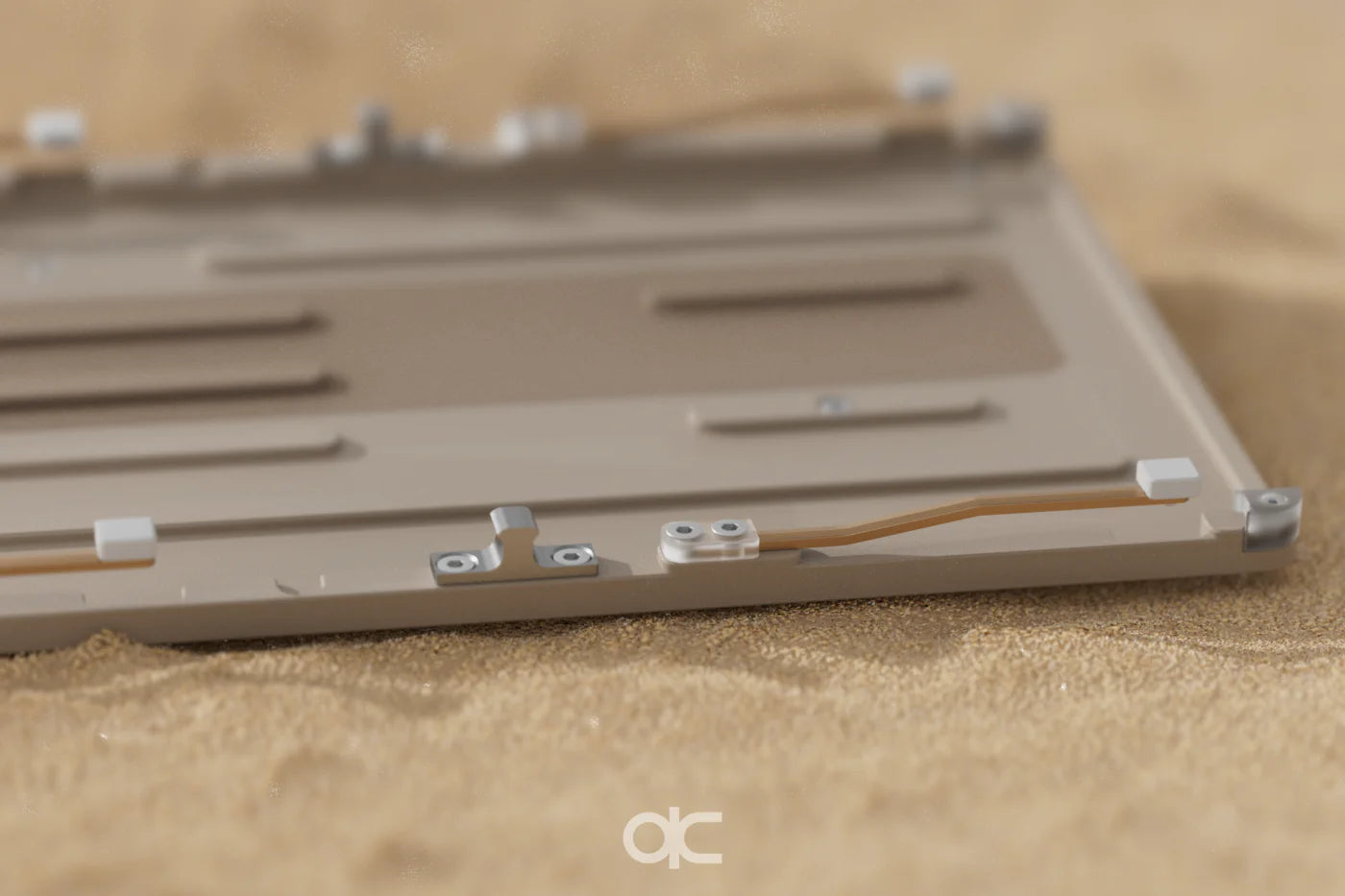

Leaf-spring Mount
The QK80 Mk2 features Leaf Spring mount and an effortless ball-catch easy disassembly system. This marks the first use of these two features in the QK series. We’ve also carefully designed the positioning of the leaf springs and the acoustic chamber in the bottom case to optimize both acoustic performance and typing feedback consistency.
Unique Design, Effortless Assembly
Leaf Spring Mounting System
Delivering a bouncier typing feedback and outstanding acoustic performanc
Ball-Catch Mechanism
Enhancing user convenience and accessibility

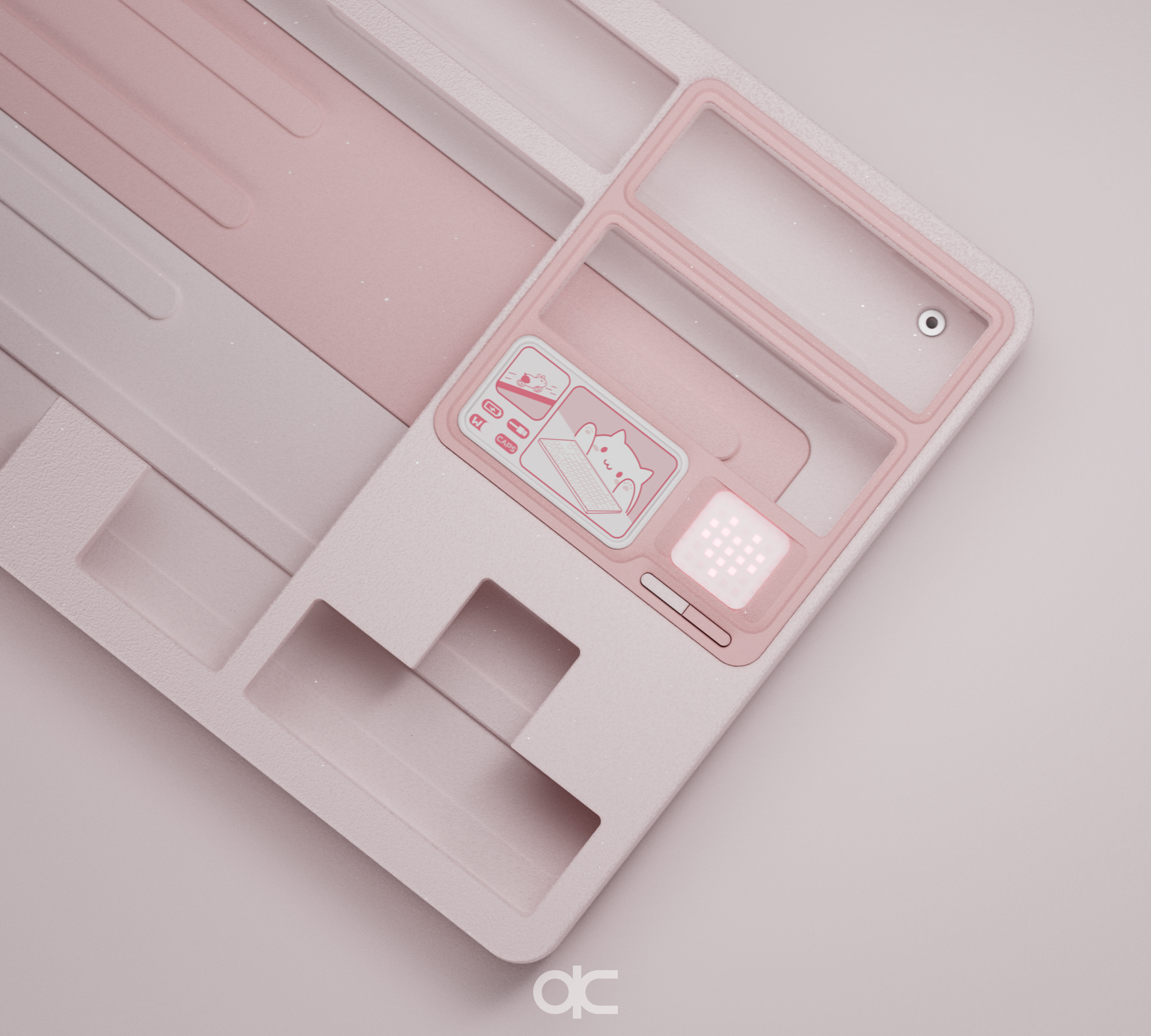

LCD Display and Dot-Matrix LED Panel
Featuring three distinctive built-in themes: Dynamic, Meow, and Code
Specifications
Specification
- Typing angle: 7 degrees
- Front height: 19mm
- Size: 137mm×362mm
- Weight: around 1.8kg before build, 2.2kg after build
All PCBs:
- Support USB-C, Bluetooth, and 2.4GHz connections
- Compatible with both ANSI and ISO layouts
- Work with WK and WKL cases
- Support both 6.25u and 7u spacebars
- Use QK's customized VIA web configurator for keymapping and screen customization, as the original VIA doesn't support advanced screen functions
Tri-mode Flex-cut Hotswap PCB w/Per-key RGB
- 1.2mm thick
- Per-key RGB
Tri-mode Flex-cut Hotswap PCB
- 1.2mm thick
- No Per-key RGB
Tri-mode Non-flex cut Hotswap PCB
- 1.6mm thick
- No Per-key RGB
Content List
Keyboard case
- Includes pre-installed screen module and screen daughterboard
- Includes two pre-installed 4000 mAh batteries
- Includes four pre-installed rubber feet
- Includes pre-installed PCB daughterboard with magnetic connector
- Includes six pre-installed leaf springs
PCB Kit
- PCB of your choice
- PET sheet (included only with per-key RGB PCB)
- IXPE sheet
- PCB Foam
Plate of your choice
Case foam and anti-static film
Accessory pack:
- 2.4g dongle
- Silicone gaskets
- Backup screen ribbon cable
- Backup case corner protector
- Backup screws and rubber feet
Free gifts (Disclaimer: If any of these gifts are missing or damaged, they will not be re-shipped or replaced)：
- Stabilizers
- Keyboard protective case
- Switch and keycap puller
- screwdriver
- USB-C cable
